The eight-pin RJ45 connector is a standardised interface which often connects a computer to a local area network (LAN). This type of connector was originally developed for telephone communications but is now used in a range of applications. The abbreviation, RJ45, stands for Registered Jack-45.
Whats the difference between RJ11 and RJ45?
RJ45 connectors commonly connect to Cat5 and Cat6 cables, while RJ11 simply connects to a telephone cable. RJ45 can connect to various devices in a copper cable network such as switches, cables, computers, routers, and so on. Switches with RJ11 connectors comprise mainly two sockets for a 2-line telephone system.
Is RJ45 a phone jack?
RJ11 is the most widely-used registered jack in telecommunications. RJ11 has a 6P2C or 6P4C configuration, and is used for wiring a single phone line. RJ45 uses an 8P8C configuration….Comparison chart.
| RJ11 | RJ45 | |
|---|---|---|
| Configuration | 6P4C (6 positions, 4 connectors) | 8P8C (8 positions, 8 connectors) |
How can you tell the difference between an RJ11 and an RJ45 connector?
The main visual difference between the two connectors is that RJ45 is wider since it comprises eight wires, while the RJ11 has four. If you plug an RJ11 plug into an RJ45 jack, for example, it can potentially damage the equipment. Different Applications The RJ45 is commonly used for LAN and ADSL connections.
What is a RJ-45 port used for?

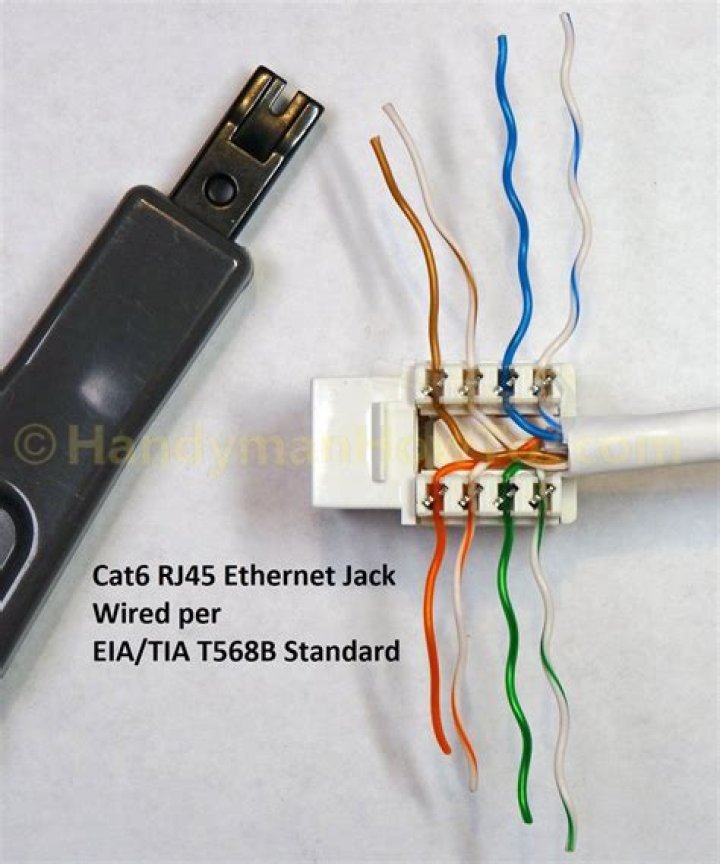

An 8-pin/8-position plug or jack is commonly used to connect computers onto Ethernet-based local area networks (LAN). Two wiring schemes–T568A and T568B–are used to terminate the twisted-pair cable onto the connector interface.
What is an RJ45 port look like?
What does a LAN port look like? LAN ports are about the size of your thumb. They resemble those old landline telephone jacks, but they’re much wider. This is because LAN ports contain eight pins, compared to the phone jack’s four or six.
What is RJ11 connector used for?
(Registered Jack-11) A telephone interface that uses a cable of twisted wire pairs and a modular jack with two, four or six contacts. RJ-11 is the common connector for plugging a telephone into the wall and the handset into the telephone. See modular connector.
Where is RJ11 used?
RJ11 is the cable connector that using in telephone sets while RJ45 is used in networking, where you connect computers or other network elements to each other.
What is the function of RJ connector?
RJ45 is a type of cable connector which is mainly used in computer networks. RJ45 is mainly used for ethernet networking which is used to connect different type of devices like a switch, hub, PC, router, firewall to each other.
What is RJ45 (registered jack-45)?
What is RJ45 (Registered Jack-45)? The RJ45 connector is a standard network connector that allows network devices to be connected using 4 pairs (8 wire) UTP cables. What Does RJ45 Do, How To Connect And Test It?
What is an RJ-45 cable?
What is RJ-45? Short for Registered Jack-45, an RJ-45 is an 8-pin connection used for Ethernet network adapters. This connector resembles the RJ-11 or 6-pin connector used with telephones in the United States, but they’re completely different.
What is the difference between RJ45 & 8P8C jacks?
Although the 8P8C jack is not identical to the RJ-45, the data port commonly retains the name. RJ45 ports on the back side of a router. The most common RJ-45 port uses four of the 8P8C wires for Ethernet communications. Pins 1 and 2 are the transmit pair, while pins 3 and 6 are the receive pair.
What are ARJ45 and GigaGate 45?
Augmented RJ-45 (ARJ45) and GigaGate 45 (GG45) are newer standards designed for high-speed communications. Both support 10 Gbps and faster connections using CAT6 and Category 7 (CAT7) cables. ARJ45 connectors come in two varieties: one for 8-pin CAT6 cables, the other for 12-pin CAT7 cables.
