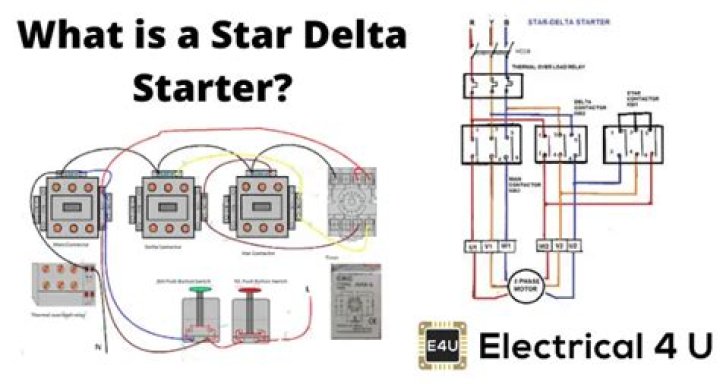

A star delta starter is the most commonly used method for the starting of a 3 phase induction motor. A star delta starter is a type of reduced voltage starter. We use it to reduce the starting current of the motor without using any external device or apparatus.
What is the use of star delta starter?
What Is a Star Delta Starter? Star delta starters are another device that may be used to reduce current demand during motor startup. It is often used for starting three-phase induction motors, but can only be used when starting the motor without load and when the required starting current is relatively low.
What are the main components of star delta starter?
Star Delta Starters consists of three contactors, a thermal overload and a timer. The contactors are smaller than the contactor used in a DOL Starter as they control the winding currents only.
What is the difference between star delta starter and DOL starter?
In the DOL starter, it is possible to start a motor with a simple circuit. This can be further explained that in a Star-Delta starter, the motor is started as a star connection and when the motor starts running the connection is changed to the delta. With star connection, the motor takes times less voltage.
What is the difference between DOL and star delta starter?
What are the types of star delta starter?
There are two types of star-delta starters, open and close. Star Delta Open Transition Starter: It is the most widely recognized strategy for star-delta starting. As the name proposes, in this strategy motor windings are open throughout the transition time of altering the windings from a star mode with a delta mode.
What is the function of starter?
As the name suggests, a starter is an electrical device which controls the electrical power for starting a motor. These electrical devices are also used for the purpose of stopping, reversing and protecting electric motors.
What are the 4 types of starters?
Types of Magnetic Motor Starters
- Direct-On-Line Starter. The direct-on-line starter is the simplest form of motor starter, other than a manual starter.
- Rotor Resistance Starter.
- Stator Resistance Starter.
- Auto Transformer Starter.
- Star Delta Starter.
How does a star delta starter work?
A star delta starter will start a motor with a star connected stator winding. When motor reaches about 80% of its full load speed, it will begin to run in a delta connected stator winding. A star delta starter is a type of reduced voltage starter.
Why is the stator winding connected in Star and not in Delta?
Firstly, the stator winding is connected in star and then in Delta so that the starting line current of the motor is reduced to one-third as compared to the starting current with the windings connected in delta. At the starting of an induction motor when the windings of the stator are star-connected, each stator phase gets a voltage VL/√3.
Where to place overload protection on a star delta starter?
For a star-delta starter there is a possibility to place the overload protection in two positions, in the line or in the windings. Overload Relay in Line: In the line is the same as just putting the overload before the motor as with a DOL starter. The rating of Overload (In Line) = FLC of Motor.
How do you reduce voltage during star delta starting?
Voltage reduction during star-delta starting is achieved by physically reconfiguring the motor windings as illustrated in the figure below. During starting the motor windings are connected in star configuration and this reduces the voltage across each winding 3. This also reduces the torque by a factor of three.
