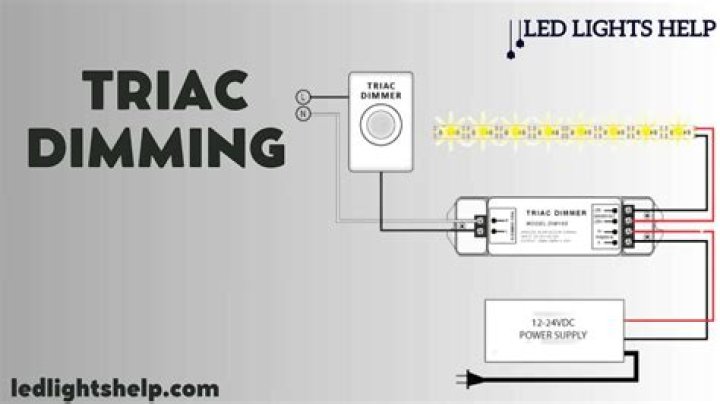

TRIAC dimmers are designed for resistive loads such as incandescent or halogen lights and have a significant installed base in the United States and worldwide. Because TRIACs turn off when there is no current flowing through them, they’ve been popular household dimming solutions during the incandescent age.
What is schematic symbol of TRIAC?
TRIAC
| The circuit symbol for a TRIAC, where “A1” is Anode 1, “A2” is Anode 2, and “G” is Gate. Anode 1 and Anode 2 are normally termed Main Terminal 1 (MT1) and Main Terminal 2 (MT2) respectively | |
|---|---|
| Type | Passive |
| Pin configuration | anode1, gate and anode2 |
What is a TRIAC symbol?
The symbol of TRIAC represents two thyristors connected in antiparallel having a common gate. Its equivalent two-thyristor structure is also given for better understanding. Just like thyristor, it has three terminals but their names are different except for Gate.
What is the symbol of DIAC and triac?
Symbols of Thyristors, Triacs and Diacs
| Description | Description |
|---|---|
| Diac Generic symbol + Info | Diac |
| Diac | Trigger Diac Tree layer Diac |
| Triac Triode for Alternating Current + Info | SIDAC Silicon Diode for Alternating Current + Info |
| SBS Silicon bilateral switch | SUS Silicon unilateral switch |
How do you read a triac?
Step by step Procedure to test the triac:
- Keep the digital multimeter into Ohmmeter mode.
- Using a junction diode determine which ohmmeter lead is positive and which is negative.
- Connect the positive lead of Ohmmeter to MT2 and the negative lead to MT1.
- Using a jumper lead connect the Gate of the Triac to MT2.
Is TRIAC dimming leading or trailing edge?
Two types of phase-cut dimmers exist: “leading edge” or “trailing edge” dimmers. All TRIAC (Triode for Alternating Current) based dimmers are leading edge dimmers.
Is TRIAC dimming same as leading edge?
Leading Edge Dimming (TRIAC dimming) utilizes a current that is turned off as the AC waveform begins, right after it crosses zero. Leading Edge Dimming is typically used with incandescent bulbs, and produces a rush of voltage every half cycle, resulting in a rush of current to the light source.
What are thyristors draw the symbols of DIAC & TRIAC?
Symbols of Thyristors, Triacs and Diacs
| Description | Description |
|---|---|
| Turn-off conducting thyristor, N channel gate controlled by anode | Photo-Thyristor |
| Diac Generic symbol + Info | Diac |
| Diac | Trigger Diac Tree layer Diac |
| Triac Triode for Alternating Current + Info | SIDAC Silicon Diode for Alternating Current + Info |
What is the meaning of TRIAC symbol?
TRIAC Symbol. The symbol consists of three terminals which are Gate, Anode or Main terminal. The two terminals are labeled as an anode1, or anode2, main terminal MT1 or MT2. From the outside view, the symbol is viewed as a back to back Thyristors which we can observe in the symbol.
What is the switching operation of a TRIAC switch?
TRIAC Switching Operation. TRIAC Symbol. The symbol consists of three terminals which are Gate, Anode or Main terminal. The two terminals are labeled as an anode1, or anode2, main terminal MT1 or MT2. From the outside view, the symbol is viewed as a back to back Thyristors which we can observe in the symbol.
What is the difference between a diac and a TRIAC?
The DIAC helps the TRIAC fire more symmetrically (more consistently from one polarity to another). Main terminals 1 and 2 on a TRIAC are not interchangeable. To successfully trigger a TRIAC, gate current must come from the main terminal 2 (MT2) side of the circuit!
How do you turn on the TRIAC?
When the voltage is increased and it reaches the breakdown voltage the TRIAC is turned on and high current starts flowing through the device. Apart from increasing the voltage of the device the TRIAC can be turned ON by applying the gate pulse, even if the applied voltage is less than the breakdown voltage.
