1. Also called: trimmer joist. a beam in a floor or roof structure attached to truncated joists in order to leave an opening for a staircase, chimney, etc. 2. a machine for trimming timber.
What are header and trimmer joists?

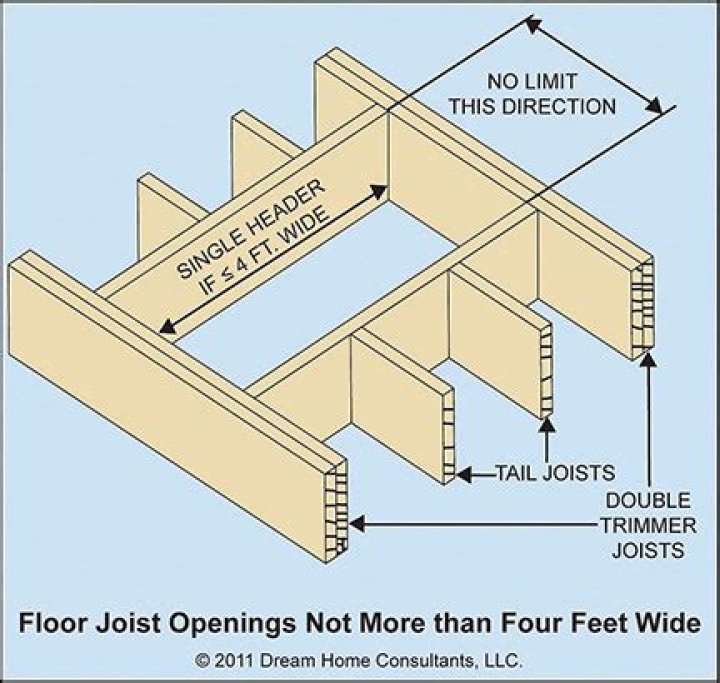

In light-frame construction, a trimmer is a timber or metal beam (joist) used to create an opening around a stairwell, skylight, chimney, and the like. Trimmers are installed parallel to the primary floor or ceiling joists and support headers, which run perpendicular to the primary joists.
What is the purpose of a trimmer stud?
A trimmer or trimmer stud is a component of a framed structure that provides additional support for an opening such as a door or window.
What are trimmer beams?
Trimmer joists A trimmer joist is a joist that is placed at right angles to the bridging joists and trimmed joists and is used to support the cut ends of the trimmed joists.
What is a trimmer stud carpentry?
In a wood-framed rough opening, the stud or framing member which runs vertically from the subfloor to and supporting the structural header member, into which a door frame is fastened.
Can you use screws on joist hangers?
Outdoors use 16d double-dipped galvanized nails (or stainless steel when called for) for installing hangers. The manufacturers agree: Never use galvanized deck screws or drywall screws to install joist hangers. Those screws don’t have the shank size and toughness to support joist loads.
Can joists sit on top of beams?
One of the most traditional ways to frame without joist hangers is to have the joists rest on top of a beam. There’s nothing wrong with this method, but realize the top of the beam will be at the bottom plane of the floor joists. It’s easy to install the hanger so tight you can’t get the joist into the hanger.
What is the difference between trimmer and header?
As nouns the difference between header and trimmer is that header is the upper portion of a page (or other) layout while trimmer is one who trims, arranges, fits, or ornaments.
What is a 2×4 trimmer?
Jacks, sometimes called trimmers, fit under each end of a header, and they transfer the load that the header carries down to the bottom plate and the framing beneath. Nailed to the jacks are full-height studs called king studs; they support the assembly between the plates.
What is another name for a trimmer stud?
The jack stud is sometimes called a trimmer stud. The term “jack” derives from mid–16th century England, where it referred to a lad, knave, or common man: Jack: (1) A man of the common people, a lad, fellow, chap, especially a low-bred or ill-mannered fellow, a knave.
Can notches be used in the trimmer beam?
Notches are not permitted in the trimmer beam. Detail of propriety joist hanger to suit joist width and loading. Bolt trimmer using 51mm diameter double sided round toothed plate connectors and M12 grade 4.6 bolts at 600mm centres
What is the best hanger for floor joists?
This hanger has been designed to do the job of the FFI, TFI, U and LUI combined. For loft conversion floor joists, we therefore reccommend the Cullen KHL hanger, which can be wrapped over steel beams or trimmers for maximum strength.
What size bolts do I need for a floor Trimmer beam?
Permissible clear spans of trimmer beams supporting trimmed floor joists and non-load bearing lightweight partitions (SC3 grade timber) Proprietary joist hanger to suit joist width and loading. Bolt trimmer using 51mm diameter double sided round tooth plate connectors and M12, grade 4.6 bolts at 600mm centres
What are jojoist hangers used for?
Joist hangers are used in construction and designed to anchor wooden beams. Primarily in roofs, decking, floors and ceilings for the purpose of creating a strong, long lasting support.
