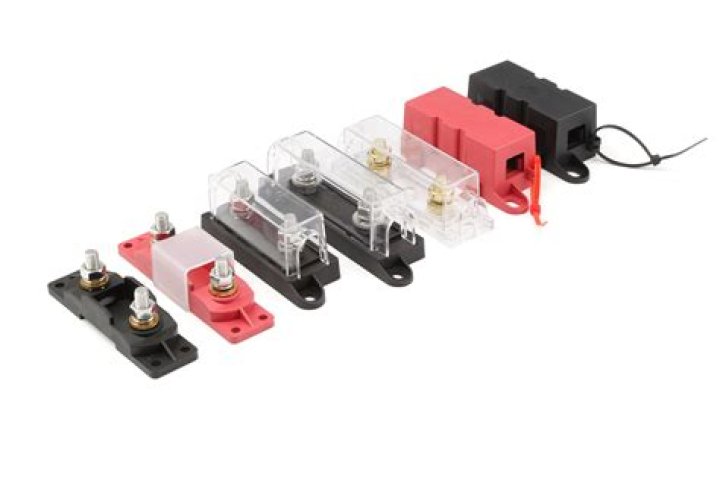

ANL fuse holders are designed for the protection of high power circuits such as main battery feeds, amplifiers, inverters, and more. You simply insert the stripped end of your cable into the fuse holder and tighten a set screw to secure the cable to the fuse holder.
What does ANL mean fuse?
ANL type fuses are the most common types of fuses used to protect the main power wire in car audio systems. ANL fuses are available from Bussmann in sizes from 35 amps to 750 amps. The following photo shows a 200 amp ANL type fuse. In this fuse holder, there is no wire-terminal block.
Are ANL fuses good?
SEA, Maxi, ATO ,AGC, and ANL fuses are good choices for short circuit protection. However, if a load can increase into a sustained overload condition, approximately 110-150% of the wire rating, the wires and the protective device in the circuit may heat up.
How does ANL fuse work?
Basically inside a fuse, there is a thin metal strip and depending on the fuse rating it will be thinner or thicker. If there is excessive current the fuse will blow the metal strip and interrupt the electrical circuit in order to prevent overheating or catching on fire.
What is the difference between AMG and ANL fuses?
ANL fuses have a higher AIC rating – 6000 amps. AMG fuses only have a 2000 amp AIC rating. That is the largest difference. It relates to battery bank size and the unique ability of a fuse with a low AIC rating to keep the circuit closed after blowing – in effect welding shut.
What does ANL fuse mean?
The ANL fuse components include the fuse itself, which is flat shaped with two different shaped metal prongs on either end and the fuse holder. The holder has two screws which are used to fasten the holder in place. A set screw and bushing in the holder keep the power line in place.
What does a fuse holder do?
Fuse holders are devices for containing, protecting and mounting fuses. Fuse holders come in two basic types, open or fully enclosed. Open fuse holder types are fuse clips, fuse blocks, socket and plug-on cap varieties.
What is automotive fuse?
An automotive fuse is an electrical component that is designed to protect other components, devices, and wiring from any damage that might occur due to excess current flow. Most automotive fuses are designed for 12v electrical systems, so they are primarily identified by an amperage rating.
