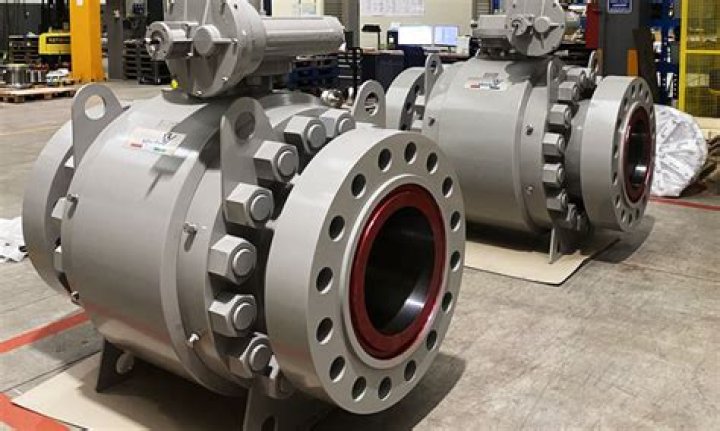

astm a216 gr wcb ball valve is a type of ball valve that is made up of the WCB material. The size of the valve is 20 inches and the pressure class is 300. The ASTM A216 standard also covers the API Trim 8 dimensions. The astm a216 gr wcb gate valve has end to end dimensions as 991mm RF, 991mm BW and 1010mm RTJ.
What does WCB mean on a valve?
Wrought Carbon
WCB stands for “Wrought Carbon” with Grade B. Sometimes you can think “C” as casting.
What is the difference between A216 WCB and WCC?
Carbon steel valves are kept in stock in forged ASTM A105 and it’s cast equivalent ASTM/A216-WCB. ASTM A216 WCC has a slightly higher pressure/ temperature rating than A216 WCB as it has a higher yield strength and a slightly higher manganese content.
Is A216 WCB killed carbon steel?
WCB is fully killed steel. I can only find the term “Killed” steel in reference to wrought of forged material. Even ASTM references killed steel only when looking at plate specs like A516 but no mention of it in casting spec. s like A216.
What is WCB stand for?
Workers Compensation Board
WCB
| Acronym | Definition |
|---|---|
| WCB | Workers Compensation Board (Canada) |
| WCB | Welcome Back |
| WCB | Waukesha Cherry-Burrell (valve manufacturer) |
| WCB | Wildlife Conservation Board (California) |
What is WCB full form?
The Full Form of WCB is Workers Compensation Board.
What killed pipe?
Killed Steel is a Deoxidized steel that has all of the oxygen removed from the melt during the steel making process. Liquid steels contain dissolved oxygen after their conversion from molten iron, but the solubility of oxygen in steel decreases with cooling.
What is ASTM A105?
ASTM A105 is a standard material specification for forged carbon steel piping components including bolts, nuts, studs and other fasteners to standard or custom dimensions, for use in ambient and higher temperature service in pressure systems.
What is the meaning of WCB in ASTM?
WCB refers to a Grade of cast carbon steel in ASTM/ASME A/SA-216, which is “Specification for Steel Castings, Carbon, Suitable for Fusion Welding for High-Temperature Service”. Grades of carbon steel castings are identified as WCA, WCB or WCC and vary based on alloy content, and mechanical properties.
What is the tensile strength of ASTM A216?
ASTM A216 has a tensile strengthof 60 to 95 kilograms per square inch. Tensile strength is a measurement of the amount of stress or stretching a material can take before breaking. A216 has a yield strengthof between 30 and 40 ksi, which measures the amount of pressure it takes for the steel to radically deform.
What is ASTM A216 WCC carbon equivalent?
Carbon steel valves are kept in stock in forged ASTM A105 and it’s cast equivalent ASTM/A216-WCB. The European/DIN equivalent is C22.8 DIN17243 (1.0460). ASTM A216-WCC is also available ex stock and on an indent basis.
What does WCB mean in valve spec?
WCB (UNS Code J03002) is covered by ASTM A216 standard, which specification covers carbon steel castings for valves, fittings, flanges and other pressure-containing parts for high temperature service and the quality required for assembly with other castings or wrought steel parts by fusion welding. These grades are all “cast” grades meaning they are made through “casting” which is a manufacturing process where a liquid material is poured into a mold and allowed to harden..
