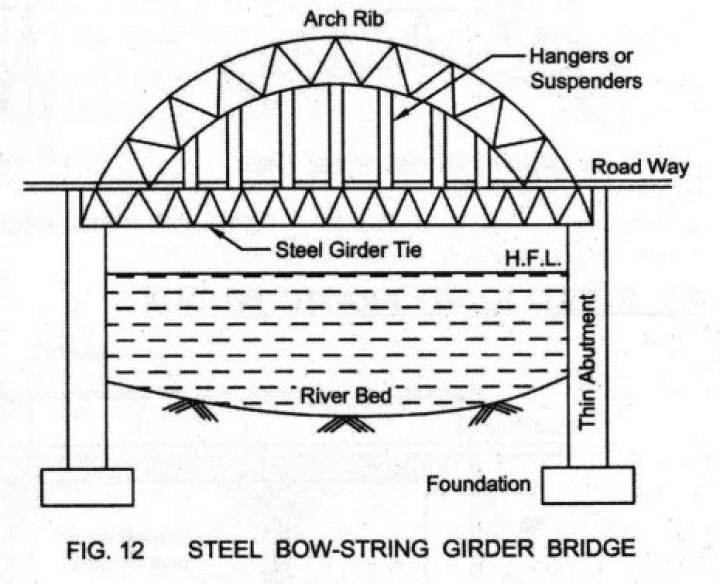

A bowstring girder bridge — or tied-arch bridge — has an arch rib on each side of the roadway (deck) and one tie beam on each arches that support the deck. Tips of the arch of this bridge are tied together by a bottom chord.
Why is a tied arch bridge sometimes called a bowstring bridge?
Thrusts downwards on a tied-arch bridge deck are translated, as tension, by vertical ties between the deck and the arch, tending to flatten it and thereby to push its tips outward into the abutments, like for other arch bridges. Therefore, the design is also called a bowstring-arch or bowstring-girder bridge.
What makes a girder bridge strong?
The weight of the beam pushes straight down on the piers. The beam itself must be strong so that it doesn’t bend under its own weight and the added weight of crossing traffic. When a load pushes down on the beam, the beam’s top edge is pushed together (compression) while the bottom edge is stretched (tension).
How much weight can a tied arch bridge hold?
Arch bridge number one held 21.5 pounds. The second arch bridge held 21 pounds so the average weight held by the arch bridges was 21.25 pounds. Truss bridge number one held 24 pounds. The second truss bridge held 23 pounds so the average weight held by the truss bridges was 23.5 pounds.
What is a bow girder?
A girder curved horizontally in plan; an arch turned through a right angle, to serve as a spandrel on a curved facade or to support curved balconies.
What is the cantilever bridge used for?
This type of bridge has been used for pedestrians, trains, and motor vehicles. Cantilevers are especially useful for spanning a waterway without dividing it with river piers. Engineer Heinrich Gerber built the first cantilever bridge in 1867. He had invented the hinge girder just one year before.
What is unique about the tied arch bridge?
It can be considered a bridge between arch bridge and a suspension bridge. They work like arch bridges on one hand, because force of the load on the deck (thrust) is translated as tension to the curved top chord by vertical ties of the deck which try to flatten the arch and to push its tips outward into the abutments.
How do you make a beam bridge stronger?
To create very tall beams, bridge designers add supporting latticework, or a truss, to the bridge’s beam. This support truss adds rigidity to the existing beam, greatly increasing its ability to dissipate the compression and tension. Once the beam begins to compress, the force spreads through the truss.
What are some disadvantages of a tied arch bridge?
Disadvantages of Tied arch bridges
- Not economical, because it should be built in a particular way and variety of material needed for construction.
- Regular maintenance required for better stability of the hangers and arch.
- The size of the bridge is limited.
Where is the box girder bridge?
Box girder bridge
| Underneath the No. 2 Road Bridge in Richmond, British Columbia, Canada | |
|---|---|
| Ancestor | Tubular bridge |
| Material | Steel, reinforced concrete, prestressed concrete |
| Movable | Possible |
| Design effort | High |
What is a tietied-arch bridge?
Tied-arch bridge (also called bowstring-arch or bowstring-girder bridge) is a type of bridge that has an arch rib on each side of the roadway (deck), and one tie beam on each arches, that support deck.
What are the disadvantages of tied-arch bridges?
But tied-arch bridges are not perfect. They can have poor welds at the connection between the arch rib and the tie girders, and at the connection between the arch and vertical ties. These welds, after some time have to be repaired which is costly, time-consuming and an inconvenience.
How does an arch bridge work?
They work like arch bridges on one hand, because force of the load on the deck (thrust) is translated as tension to the curved top chord by vertical ties of the deck which try to flatten the arch and to push its tips outward into the abutments. Tips of the arch of this bridge are tied together by a bottom chord.
What is the length of the Godavari Arch Bridge?
The Godavari Arch Bridge over the Godavari River in Rajahmundry, India. It was built in 1997 and its total length is 2,745 m. Its longest span has 97.5 m. Bridge carries railway, namely South Central Railway Line of India and can carry trains that go as fast as 250 km/h.
