Burn back is a very common problem. It results when a weld forms in the contact tip. It usually occurs when the wire is fed too slowly or the MIG gun is held too close to the base metal.
What causes Burnback?
Improper electrode stick-out Check the distance between your torch and your metal, and make sure you’re not too close. Keep a distance of at least a half-inch from the surface. Crowding your work is one of the most common causes of contact tip burnback, and one of the easiest to correct.
How do you prevent Burnbacks?
How do you stop a weld from burning?
To prevent burn-through and warping, don’t whip or weave the torch; the more time the arc is in an area, the hotter it becomes. Always travel in a straight line and use the fastest travel speed possible that maintains a good bead profile. Another way to prevent burn-through is to use a push technique of the MIG gun.
What is stronger MIG or TIG?
TIG welding produces cleaner and more precise welds than MIG welding or other Arc welding methods, making it the strongest. That said, different welding jobs may require different methods, while TIG is generally stronger and higher in quality, you should use MIG or another method if the job calls for it.
How much a welder can weld in one day?
The average welder can complete about 140 inches of weld per hour. The number of welds per hour is the same as the diameter of the pipe. You can get an hourly rate of pipeline joints.
How do you calculate Weld time?
EXAMPLE 1) Welding Time = Wt/Ft of Weld x Ft of Weld Deposition Rate x Operating Factor Substituting the values in Example 1: . 814 x 1,280 5.36 x .
What is Burnback setting on a welder?
For instance, certain welding machines have a “Burnback Control” setting, which adjust the amount of time that the welding wire remains electrically energized after the wire feeding has stopped. Burnback is when your wire burns back into your contact tip, possibly welding them together.
What is MIG inductance?
Meaning the mig-welding-inductance is preset to a level that works for most everyday applications. The inductance setting on a mig welder controls the rate of current rise. following the short-circuit state. That is during the time when the wire is short circuiting into the weld puddle.
What is keyhole welding?
A technique in which a concentrated heat source penetrates partially or completely through a workpiece, forming a hole (keyhole) at the leading edge of the weld pool. As the heat source progresses, the molten metal fills in behind the hole to form the weld bead.
What is a burnback in welding?
A burnback in welding is when your wire burns back and sticks itself to your contact tip. There are several reasons this can happen. The most primary causes of burnbacks in a robotic application include:
What is MIG weld burnback and how to prevent it?

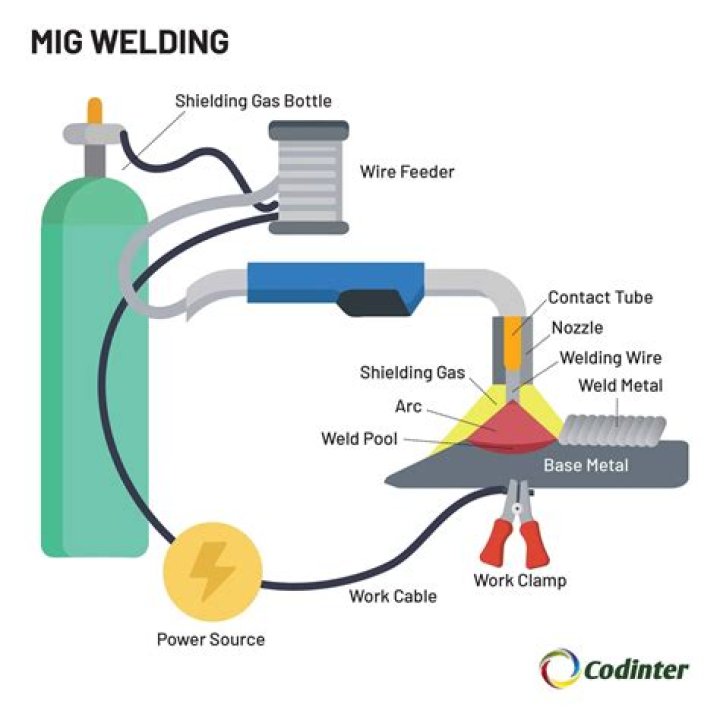

Burnback happens when the arc that is generated climbs up the wire and fuses the wire to the contact tip of the welding gun. Burnback can be a common occurrence with MIG welds. It’s important to understand what burnback is and what can cause it in order to prevent it from happening.
What is burnback control?
What is burnback control? Burnback control is a setting available in MIG welding Machine. That controls the amount of wire to burnback after realease of trigger of your torch. What causes BurnBack? There are lot of reasons to cause burnback.
Why does my robotic welder keep burning out?
Go ahead and elaborate if you want to, Jay. The biggest reason I see consistent burnback in robotic welding is because the feeder tension isn’t set right. Usually this stems from your wire feeder tension not being tight enough and the weld wire barely skipping through.
