Capacitive sensing is a technology based on capacitive coupling that takes the capacitance produced by the human body as the input. It allows a more reliable solution for applications to measure liquid levels, material composition, mechanical buttons, and human-to-machine interfaces.
What does a capacitive sensor sense?

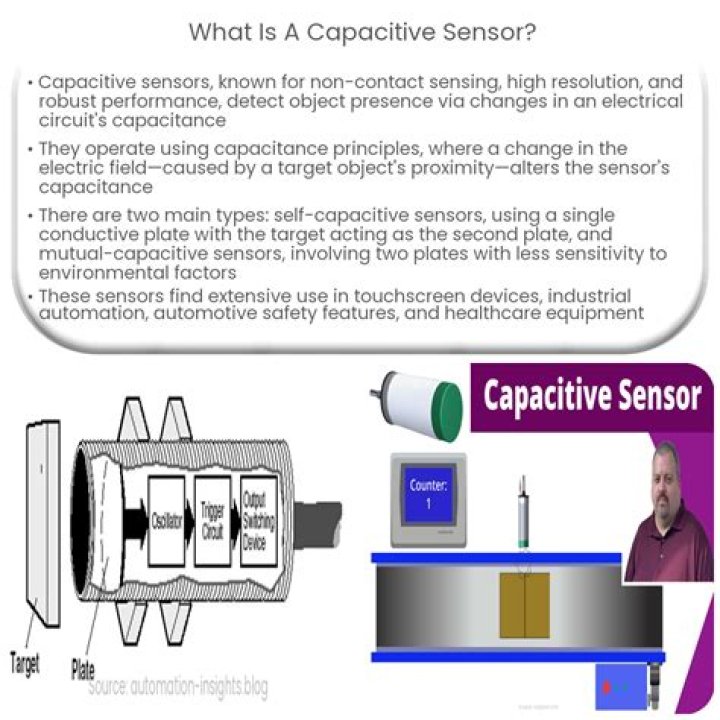

Capacitive proximity sensors are non-contact devices that can detect the presence or absence of virtually any object regardless of material. They utilize the electrical property of capacitance and the change of capacitance based on a change in the electrical field around the active face of the sensor.
How do capacitive sensors work?
Noncontact capacitive sensors work by measuring changes in an electrical property called capacitance. Capacitance describes how two conductive objects with a space between them respond to a voltage difference applied to them. If the polarity of the voltage is reversed, the charges will also reverse.
What are the types of capacitive sensors?
Understanding the Different Types of Capacitive Sensors
- Miniature. Miniature capacitive sensors can come in a cylindrical or wafer-style in order to fit the most compact spaces.
- Cylindrical.
- High temperature.
- Analog.
How does a capacitive touchscreen work?
Unlike resistive touch screens, capacitive screens do not use the pressure of your finger to create a change in the flow of electricity. In both instances, when a finger hits the screen a tiny electrical charge is transferred to the finger to complete the circuit, creating a voltage drop on that point of the screen.
Where are capacitive sensors used?
Capacitive sensors are used in the measurement of brake disc deformation. Due to the high temperature development, very few sensors are suitable for operating close to the measurement object. Capacitive transducers detect changes in the nanometer range and measure the wear on the brake disc.
What is the principle of capacitive transducer?
The capacitive transducers work on the principle of change in capacitance of the capacitor. This change in capacitance could be caused by change in overlapping area A of the plates, change in the distance d between the plates and change in dielectric constant e.
What is a capacitive device?
A capacitive touch screen is a control display that uses the conductive touch of a human finger or a specialized device for input. Input to resistive touch screens works through pressure resulting in two conductive layers being pressed together.
How does a capacitive touch register touch?
A capacitive touchscreen employs the use of a transparent electrode layer. This layer is placed on top of a glass panel and then covered by a protective layer. When a finger touches the screen, some of the electrical charges transfer from the screen to the user.
What is the capacitive load?
Capacitive loads are the third type, and are opposite of inductive loads. Capacitive loads include energy stored in materials and devices, such as capacitors, and cause changes in voltage to lag behind changes in current.
What do you mean by capacitive?
electrical capacitance
adjective Electricity. pertaining to electrical capacitance, or the property of being able to collect and hold a charge of electricity. exhibiting or relying on electrical capacitance: smartphones with capacitive touchscreens that react to electrical impulses generated by your finger.
What are the applications of capacitive sensing?
Capacitive sensing. Many types of sensors use capacitive sensing, including sensors to detect and measure proximity, position and displacement, force, humidity, fluid level, and acceleration. Human interface devices based on capacitive sensing, such as trackpads, can replace the computer mouse.
What are the parts of a capacitive sensor?
Capacitive sensors have four main parts, the sensor’s body, the sensing face, the indicator light, and the cable or cable connection end. If the sensor has an adjustable sensing range, it will also have an adjustment screw to adjust the sensing range. Inside the sensor’s body is where the circuitry is that makes the sensor work.
What are the applications of capacitive proximity sensors?
One application for capacitive proximity sensors is leveldetection through a barrier. For example, water has a muchhigher dielectric than plastic. This gives the sensor the ability to“see through” the plastic and detect the water.
What is the difference between projective capacitance and capacitive sensing?
Comparison with other touchscreen technologies. However, projective capacitance improves a touchscreen’s accuracy as it forms a triangulated grid around the point of touch. A standard stylus cannot be used for capacitive sensing, but special capacitive stylus, which are conductive, exist for the purpose.
