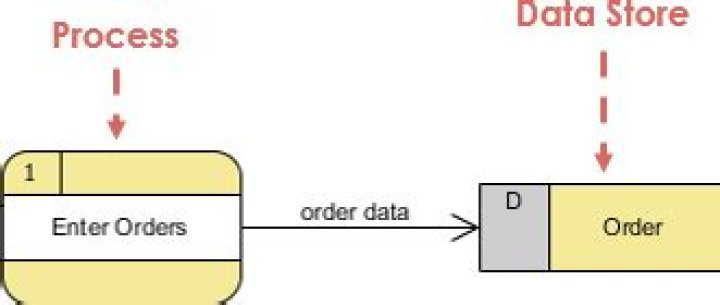

Data store: files or repositories that hold information for later use, such as a database table or a membership form. Each data store receives a simple label, such as “Orders.” Data flow: the route that data takes between the external entities, processes and data stores.
What is DFD in ISDI?
DFD is the abbreviation for Data Flow Diagram. The flow of data of a system or a process is represented by DFD.
Which software is best for DFD?
Top Reasons SmartDraw is the Best Data Flow Diagram (DFD) Software. Click simple commands and SmartDraw builds your data flow diagram for you. Add or remove a shape, and SmartDraw realigns and arranges all the elements so that everything looks great.
How data store is represented in a data flow diagram?
Data Flow – Movement of data between external entities, processes and data stores is represented with an arrow symbol, which indicates the direction of flow. This data could be electronic, written or verbal.
What does a data store symbol in the data flow diagram signify *?
Data Flow Diagrams are composed of the four basic symbols shown below. The External Entity symbol represents sources of data to the system or destinations of data from the system. The Data Flow symbol represents movement of data. The Data Store symbol represents data that is not moving (delayed data at rest).
What is DFD and ERD?
DFD shows how data enter a system, are transformed in that system, and how it is stored in it. Meanwhile, ERD represents the entity model and will show what a system or a database will look like but not explain how to implement it. DFD is represented by ovals, rectangles, or circles and is named with a single word.
What are the types of DFD?
DFD is of two types:
- Logical DFD: Logical data flow diagram mainly focuses on the system process. It illustrates how data flows in the system.
- Physical DFD: Physical data flow diagram shows how the data flow is actually implemented in the system. Physical DFD is more specific and close to implementation.
