The dc component is equal to the value of the instantaneous ac current at fault inception and of opposite polarity. Magnitude of the dc component is dependant on where in the cycle the fault inception takes place. In the worse case, the initial dc offset will be √2 times the symmetrical short circuit value (RMS).
What is DC component in Fourier series?
When we represent a periodic signal using the magnitudes and phases in its Fourier series, we call that the frequency-domain representation of the signal. The DC component is often easy to eyeball—it’s equal to the average value of the signal over a period. For example, in the signal above, the DC offset is 0.5.
What is the DC component of the waveform?
The DC component would be the constant voltage added to a pure AC waveform. For example, the true average voltage a pure AC waveform would be zero.

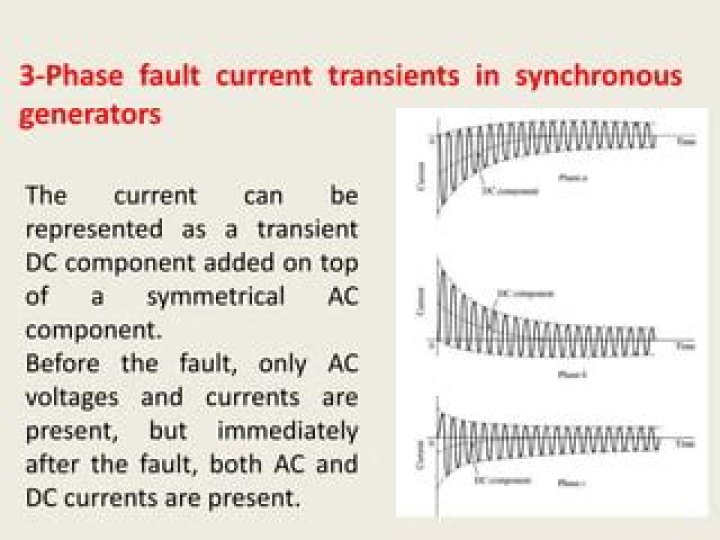

Why a decaying DC component is present in the fault current?
It deteriorates with occurrence of the fault.. Now when fault occurs the current in any system inductance cannot instantly change from it’s value at fault inception to that of it’s steady state fault value. Thus as to compensate for this, a dc component is generated in the system.
What is DC offset in fault current?
If the fault occurs if the voltage is zero, the current cannot change instantaniously, it must start from zero. Since it also must lag the voltage by 90°, it becomes asymetrical or offset. This offset is called the dc component.
What is DC offset component of current?
The asymmetrical response to the fault is called DC Offset and it is a naturally occurring phenomenon of the electrical system. “The actual magnitude of the DC current is dependent on the point of the voltage wave where the fault occurs and the circuit angle (X/R).”
How do you identify DC components?
Measure the DC offset. Count the number of vertical divisions between the zero line on the oscilloscope and the centerof the oscillatory signal. Multiply the number of vertical divisions by the volts/division setting in order to obtain the DC offset.
What is DC component in signal?
DC component just means the average of positive and negative half cycles is not zero. There is an offset. The reason maybe that the signal is “biased” by adding a DC signal. Thus, for a AC voltage source, which is sinosoidal you can just calculate the time average. For half cycle it is 0.636 x Peak value.
What does a DC component do?
DC-balanced signals are used in communications systems to prevent bit errors when passing through circuits with capacitive coupling or transformers. Bit errors can occur when a series of 1’s create a DC level that charges the coupling capacitor, bringing the signal input down incorrectly to a 0-level.
What do you mean by DC components?
DC components would be the constant voltage added to a pure AC waveform. When the AC waveform has a DC component, the average voltage would be equal to the DC voltage instead, because opposite peaks cancel each other leaving only the DC component.
Why does DC offset occur during a fault transient?
DC Offset is necessary to maintain the basic laws of electricity at the initial moment when the current in the system makes a sudden change, like what happens during a fault. A fault at zero degrees on the A-Phase voltage means that there is zero voltage when the fault is applied to the system.
What creates DC offset?
In audio recording, a DC offset is an undesirable characteristic. It occurs in the capturing of sound, before it reaches the recorder, and is normally caused by defective or low-quality equipment. It results in an offset of the center of the recording waveform that can cause two main problems.
What are FFTs and the power spectrum?
FFTs and the Power Spectrum are useful for measuring the frequency content of stationary or transient signals. FFTs produce the average frequency content of a signal over the entire time that the signal was acquired.
What is the maximum frequency of the FFT?
The maximum frequency of the FFT is half of the signal sampling frequency (in this case the sample rate was 22000 samples/sec), but in the upper region the results are never reliable, so the sampling result should be set to: 1.25 is the absolute minimum factor for getting the right values also in the upper region of the FFT.
What is the fast Fourier transform (FFT)?
The Fast Fourier Transform (FFT) and the power spectrum are powerful tools for analyzing and measuring signals from plug-in data acquisition (DAQ) devices. For example, you can effectively acquire time-domain signals, measure
What are the functions of FFT in signal analysis?
The basic functions for FFT-based signal analysis are the FFT, the Power Spectrum, and the Cross Power Spectrum. Using these functions as building blocks, you can create additional measurement functions such as frequency response, impulse response, coherence, amplitude spectrum, and phase spectrum.
