[ dĭ-plē′shən ] A region in a semiconductor device, usually at the juncture of P-type and N-type materials, in which there is neither an excess of electrons nor of holes. Large depletion regions inhibit current flow.
What causes depletion layer in semiconductor?
The depletion region is caused by the diffusion of charges. The holes and the electrons diffusing towards each other combine near the junction. In doing so positive and negative ions are formed.
What is depletion layer and how it is formed?
Diode is formed simply by joining p-type and n-type semiconductor material, nothing more. Similarly the holes from the p-type material diffuse into n-type material resulting in a layer of positive ions in the n-type material. …
Why is depletion layer formed?
This region of uncovered positive and negative ions is called the depletion region due to the depletion of carriers in this region. The depletion region is so named because it is formed from a conducting region by removal of all free charge carriers, leaving none to carry a current.
What are the main components of depletion layer?
Note: The depletion layer consists of both electrons and protons but they are immobile in nature therefore the correct answer would be immobile ions. The donor and acceptor atom get a positive and negative charge due to which the PN junction forms.
What is depletion layer Class 12?
Depletion layer is the region created around the p-n junction which is devoid of free charge carriers and has immobile ions.It is created due to diffusion of majority carriers across the junction when p-n junction is formed.
Where are depletion layers formed?

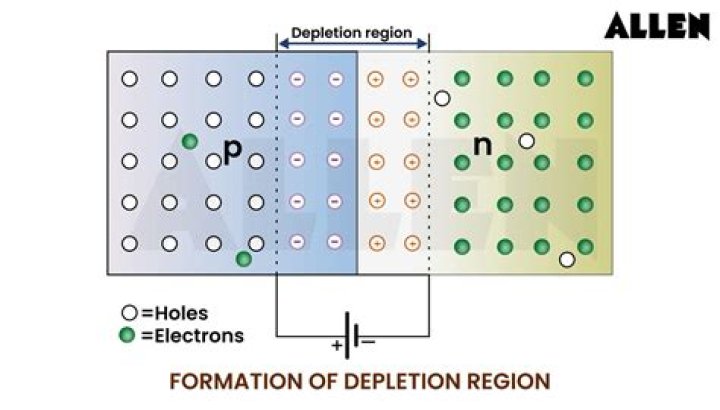

The solid circles on the right of the junction represent the available electrons from the n-type dopant. Near the junction, electrons diffuse across to combine with holes, creating a “depletion region”.
What is the importance of depletion layer?
The depletion layer at the interface between a compact semiconductor and a liquid medium plays an important role in light-induced charge separation. The local electrostatic field present in the space charge layer serves to separate the electron–hole pairs generated by illumination of the semiconductor.
How depletion layer is produced?
Depletion Region Details Filling a hole makes a negative ion and leaves behind a positive ion on the n-side. A space charge builds up, creating a depletion region which inhibits any further electron transfer unless it is helped by putting a forward bias on the junction.
What is barrier potential in semiconductor?
The barrier potential is the potential difference across the depletion layer between the p and the n regions of a semiconductor. It is known as the barrier potential since it opposes the flow of the charge carriers on either side of the semiconductor.
What is depletion or barrier layer?
What is a depletion layer when is it formed?
Depletion Region When a p-n junction is formed, some of the free electrons in the n-region diffuse across the junction and combine with holes to form negative ions. In so doing they leave behind positive ions at the donor impurity sites. Show more detail of depletion region.
Why are pn and metal-semiconductor junctions unaware of them?
92Chapter 4●PN and Metal–Semiconductor Junctions unaware of them because they are difficult to detect directly.
How do you calculate depletion capacitance?
Depletion Capacitance (cont.) n break up the charge qJ on the p-side of the junction similarly: total charge in the depletion region = DC charge + small-signal charge qJ = Q J + qj note that the DC charge is a negative number n Since the incremental charge qj and the incremental voltage are “small” (define what small means later),
Are the P and n layers uniformly doped at acceptor and donor density?
For simplicity, it is usually assumed that the P and N layers are uniformly doped at acceptor density Na, and donor density Nd, respectively.
What are the three layers of a PN junction?
Figure 4–3d shows that a PN junction can be divided into three layers: the neutral N layer, the neutral P layer, and a depletion layerin the middle. In the middle layer, EFis close to neitherEvnor Ec.
