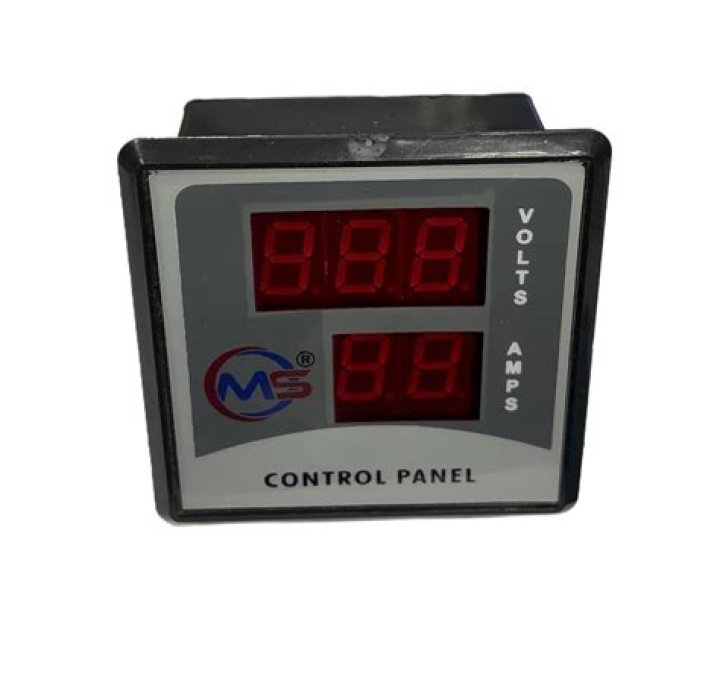

Digital panel meters are digital displays intended to be mounted in a panel, such as a control panel. They typically read some type of input, be it a voltage, current, or resistance, and display its value digitally.
What is LCD meter?
Digital panel meters (or DPM) typically uses either an LCD (Liquid Crystal Display) or LED (Light-Emitting Diodes) to display information in an alphanumerical format.
What is digital volt meter?
A digital voltmeter (DVM) measures an unknown input voltage by converting the voltage to a digital value and then displays the voltage in numeric form. DVMs are usually designed around a special type of analog-to-digital converter called an integrating converter.
How does a digital voltage meter work?
A digital voltmeter (DVM) displays the value of a.c. or d.c voltage being measured directly as discrete numerals in the decimal number system. The use of digital voltmeters increases the speed with which readings can be taken.
Which IC is used in the LCD digital panel meter?
The whole circuit is built around a single 40 pin IC L 7107.It is an Analogue to Digital Converter (ADC) IC from Intersil. The whole circuits for converting analogue signals to digital signals and the seven segment display driver circuit are enclosed in the package of IC.
What is a digital panel meter used for?
Digital panel meters present numerical information that’s easy to read. Used extensively in process control equipment, they are an inexpensive way to present data from instrumentation such as thermocouples, humidity and pressure sensors.
How do you read a meter with a digital display?
How to Read Your Meter
- Locate the digital display on the front of the meter.
- Read the numbers of the digital display from left to right.
- To calculate your monthly electrical usage, subtract the number from the reading on the front of your last bill to determine the amount of kilowatt-hours since your last meter reading.
What is the difference between LCD and LED?
LED stands for Light Emitting Diode while LCD is short for Liquid Crystal Display. The difference between the two is the placement and type of light used. LEDs use diodes while LCDs use fluorescent lights. LEDs are also slimmer than LCDs and provide a better quality, clearer picture with high definition output.
How does a digital multimeter measure voltage?
Multimeters measure resistance by injecting a small current into the circuit, and then measuring the voltage drop across those points in the circuit. The known current, and the resulting voltage drop are then used to calculate the resistance using Ohm’s Law, V=I*R.
What are LCD panel meters used for?
LCD Panel Meters Shop for high-accuracy LCD panel meters designed to display input signals in a wide variety of electronics applications (voltmeter, current meter, pH meter, etc.). These meters have high-resolution displays that are easy to read, and we offer jumbo and backlit models for even greater visibility in any environment.
What is an 80-260 volt panel meter used for?
80-260 Volt 0-20 Amp AC Panel Meter This digital panel has a large LCD, allowing you to easily switch your view to voltage, current, and energy. Despite being an LCD panel meter, you can still use it in a dark place because of its backlight function. It runs on active power, and has a reset function of energy and running time keys.
Can you change the display content of a digital panel meter?
Some digital panel meters with alphanumeric displays are customizable, which means you can modify and change the setting of the displayed content. For instance, a digital panel meter for temperature has the flexibility to display its reading in Celsius or Fahrenheit.
What is an alphanumeric display on a panel meter?
An alphanumeric display is usually present in an LCD digital panel meter. It can display both numbers and letters on the screen, making it highly suitable and adaptable to complex signal readings. Some digital panel meters with alphanumeric displays are customizable, which means you can modify and change the setting of the displayed content.
