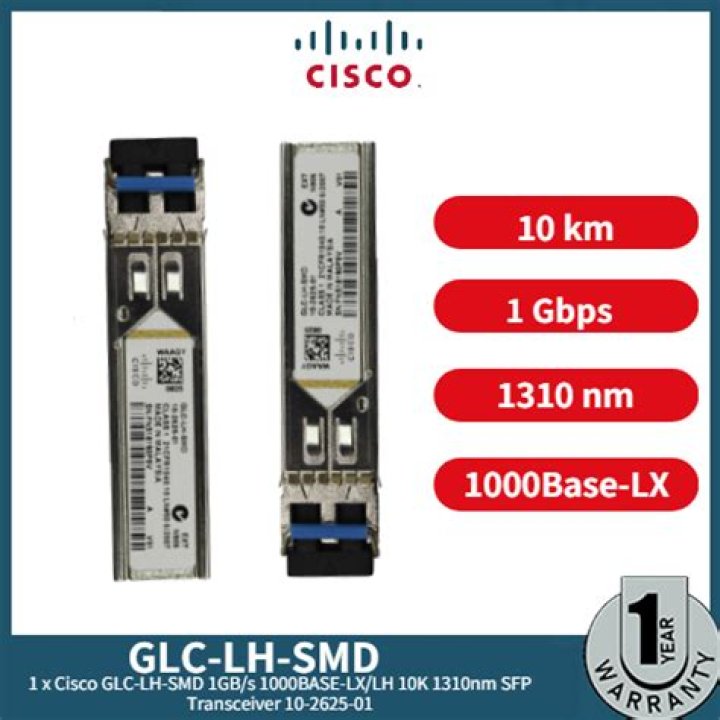

Description. The Cisco SFP Gigabit Ethernet Transceiver Module (GLC-LH-SMD) is a Cisco 1000BASE-LX/LH small form-factor pluggable (SFP) Gigabit Ethernet transceiver. This donation provides a single transceiver module, part number GLC-LH-SMD=, without any additional equipment.
What are gigabit SFP ports?
What Is SFP Port on a Gigabit Switch? The SFP port is designed for use with small form factor (SFF) connectors, and offers high speed and physical compactness. It enables a Gigabit switch to allow optical or copper links by inserting the corresponding SFP module (fiber SFP or copper SFP).
What is SFP in fiber-optic?
The small form-factor pluggable (SFP) is a compact, hot-pluggable network interface module used for both telecommunication and data communications applications. An SFP interface on networking hardware is a modular slot for a media-specific transceiver in order to connect a fiber-optic cable or sometimes a copper cable.
What is the difference between GLC-SX-MMD and GLC-SX-MM?
GLC-SX-MM is a legacy model, it doesn’t feature DOM function and is EOL, it comes with the lowest price compared with the others. GLC-SX-MMD is the replacement of GLC-SX-MM which features an enhanced DOM interface, but with a more expensive price.
What is the point of 1g SFP?
SFP ports enable Gigabit switches to connect to a wide variety of fiber and Ethernet cables in order to extend switching functionality throughout the network.
What is the point of SFP?
SFP ports are an essential part of high-speed telecommunications and data communications, especially in large network environments. It’s important to remember that an SFP port’s ultimate goal is to facilitate a reliable, wired, high-speed connection between two devices via copper or fiber optic cables.
What are Gbics and SFPs used for and what is the difference between them?
They are used to convert optical and electrical signals. GBIC stands for Gigabit Interface Converter and SFP stands for Small Form-factor Pluggable. SFP’s being more compact is beneficial because the larger size of a GBIC module means that you can fit less in to a line card or switch.
What are SFP uplinks?
An SFP uplink port is a piece of hardware produced by Cisco Systems. SFP stands for “Small Form-factor Pluggable” and applies to a range of components for Cisco switches. One of these components is an uplink module, which contains two or four ports.
How do SFPs work?
The SFP transceiver is a compact, hot-swappable device that plugs into a physical port of a network device. SFP optics are used in communication networks and have a transmitting side (Tx) and a receiving side (Rx). Different SFP transceivers work with different wavelengths at an appointed distance.
What is the difference between 1G SFP and gigabit SFP?
When the SFP port is inserted in 1G SFP with electrical port, the network cable (Cat5e/Cat6/Cat7 cable) must be used for data transmission. Whereas, when the SFP port is plugged in Gigabit SFP with optical port, fiber jumpers (LC fiber) need to support fiber connections.
What are the SFP ports of a Gigabit PoE switch?
FS.COM is also provides these uplink SFP ports on 8-port and 24-port Gigabit PoE switches for 1 Gigabit per second data rate. In addition to the SFP ports, Gigabit switch generally has several RJ45 ports. Both of them can be transmitted with Gigabit Ethernet. Then what are the differences among SFP port vs. RJ45 port of Gigabit switch?
What is the difference between fiber SFP and RJ45 SFP?
Therefore, the RJ45 SFP module is generally used for short range uplinks to connect between an all-SFP distribution switch and an all-copper edge switch, and fiber SFP module is most commonly used for a high-speed fiber uplink over longer distances.
How much power does a Cisco SFP module consume?
Cisco SFP modules typically consume up to 1W per SFP port, with the exception of the Compact SFP (GLC-2BX-D) consuming up to 1.5W. Table 3 lists temperature range and DOM support information for the SFPs.
