“Hinge moment” is the technical name for the force required to deflect a control surface. In small, relatively slow airplanes, hinge moments are not very large; pilots move the controls with ease. But as control surfaces get larger and speeds get higher, hinge moments grow rapidly.
Does aileron control roll?

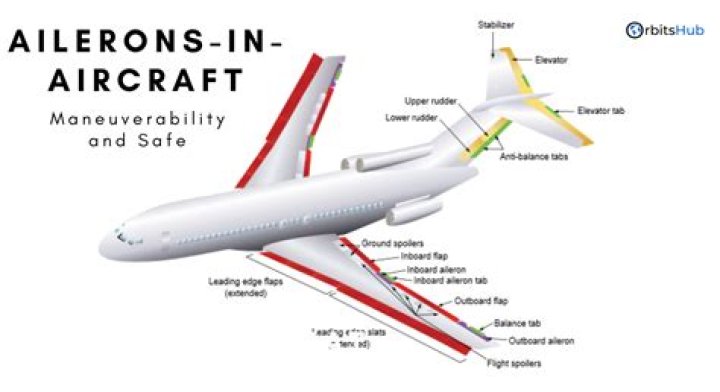

The Ailerons Control Roll On the outer rear edge of each wing, the two ailerons move in opposite directions, up and down, decreasing lift on one wing while increasing it on the other. This causes the airplane to roll to the left or right.
What is Frise aileron?
Definition of Frise aileron : an aileron having a nose portion projecting ahead of the hinge axis and a lower surface in line with the lower surface of the wing.
What is the hinge moment?
The hinge moment is the moment acting about the hinge line of a control surface that must be overcome to move the control surface when a pilot exerts force command on the control stick.
How does an aileron roll work?
The aileron roll is an aerobatic maneuver in which an aircraft does a full 360° revolution about its longitudinal axis. When executed properly, there is no appreciable change in altitude and the aircraft exits the maneuver on the same heading as it entered.
What is the function of an aileron?
aileron, movable part of an airplane wing that is controlled by the pilot and permits him to roll the aircraft around its longitudinal axis. Ailerons are thus used primarily to bank the aircraft for turning.
How do you attach ailerons?
Turn the aileron upside down and place it onto the wing with the long side of the bevelled angle against the wing. Place a one-inch portion of a two-inch piece of fiberglass tape onto the aileron at each tip. Fold the tape over the edge onto the wing, connecting the two pieces.
Where is the Frise aileron hinge line?
Frise Ailerons. The hinge line of the Frise aileron, invented by Leslie George Frise, is always at or below the wing’s lower surface.
How does an aileron link work?
If the link is attached to the bottom of the tab, it’s also attached to the bottom of the wing. Thus, if the aileron is deflected upward, the link — usually a simple hollow rod — pulls the tab downward, helping the aileron along by reducing its hinge moment.
How do you identify a Frise aileron?
The hinge line of the Frise aileron, invented by Leslie George Frise, is always at or below the wing’s lower surface. If one sees aileron hinge brackets below the wing, chances are that one is looking at a Frise aileron (Figure 5.5).
How can the gap between the aileron and wing be made?
The gap between the aileron and wing can be made as narrow as desired by describing another arc slightly larger than the first. This in fact is typical of the Frise aileron design. The narrow wing-to-aileron gap reduces air flow from the high-pressure wing under surface to the lower pressure wing upper surface, reducing drag.
