Truth Table. The counter produces the output 0000 when there is no clock input passed(0). The counter produces the output 1000 when the 1st clock pulse is passed to the flip flops. The counter produces the output 1100 when the 2nd clock pulse is passed to the flip flops.
What is Johnson’s counter?
A Johnson counter is a modified ring counter in which the output from the last flip flop is inverted and fed back as an input to the first. It is also called as Inverse Feedback Counter or Twisted Ring Counter.
Why is Johnson’s counter considered as mod 2n counter?
The MOD of the Johnson counter is 2n if n flip-flops are used. The main advantage of the Johnson counter counter is that it only needs half the number of flip-flops compared to the standard ring counter for the same MOD. The D flip flop clock has a rising edge CLK input.
What is a 4 bit Johnson counter?
A 4-bit Johnson ring counter passes blocks of four logic “0” and then four logic “1” thereby producing an 8-bit pattern. As the inverted output Q is connected to the input D this 8-bit pattern continually repeats.
What is Johnson counter explain its advantages and disadvantages?
Johnson counter has 8 sequences: 0001, 0011, 0111, 1111, 1110, 1100, 1000, and 0000. Advantage of Johnson counter is that, it has more outputs than ring counter. Disadvantage of Johnson counter is that , Only out of 15 states are only 8 are used.
How do Johnson counters and Ring counters work explain in detail?
“Johnson counter” or “twisted ring counter” is a type of synchronous ring counter in which the complemented output of the flip-flop is connected with the input of the first flip-flop. Johnson counter can be made with D-flip flops or JK-flip flops in cascade setup.
Is Johnson counter asynchronous?
Johnson counter also known as creeping counter, is an example of synchronous counter.
How many states have unused Johnson counters?
4-bit Johnson counter: 0000, 1000, 1100, 1110, 1111, 0111, 0011, 0001, 0000. 8 unused states are present.
Is Johnson counter self correcting?
The final, self-correcting 4-bit Johnson counter is shown below. It is considered good design practice to have at least a single bit self-correcting circuit, as the one above, for each Johnson counter being used.
What is JK flip flop truth table?
Truth Table: When both of the inputs of JK flip flop are set to 1 and clock input is also pulse “High” then from the SET state to a RESET state, the circuit will be toggled. The JK flip flop work as a T-type toggle flip flop when both of its inputs are set to 1. The JK flip flop is an improved clocked SR flip flop.
What are the advantages and disadvantages of Johnson counter?
Advantages/Disadvantages of Johnson Counter
- The johnson counter counts the no. of stages twice equal to the no. of clock pulses given to the flip-flops.
- It counts the events in a continuous closed loop within the circuit.
- It can be designed by using D and JK flip-flops.
- It can be used as a self-decoding circuit.
What is the truth table of the 4-bit Johnson counter?

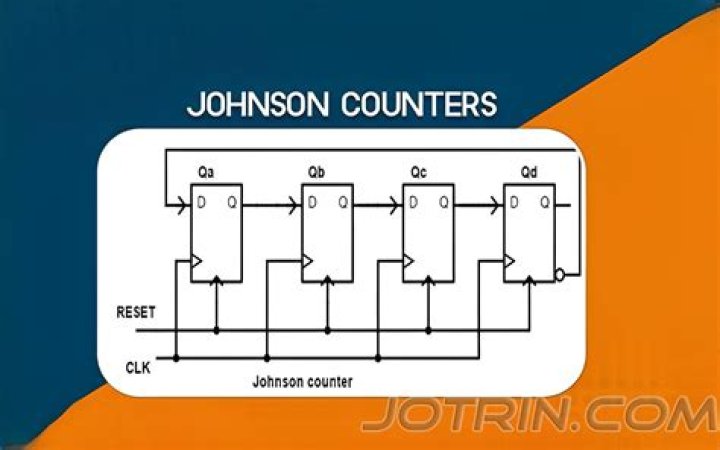

The truth table of the 4-bit Johnson counter is given below; The schematic of 4-bit Johnson counter consists of 4 D-flip flops or 4 JK-flip flops.
How does a Johnson counter work?
A Johnson counter is a modified ring counter, where the inverted output from the last flip flop is connected to the input to the first. The register cycles through a sequence of bit-patterns. The MOD of the Johnson counter is 2n if n flip-flops are used.
What is a 2n bit Johnson counter?
If we use n flip flops to design the Johnson counter, it is known as 2n bit Johnson counter or Mod 2n Johnson counter. This is an advantage of the Johnson counter that it requires only half number of flip flops that of a ring counter uses, to design the same Mod.
What is the input value of ABCD in 4 bit Johnson counter?
The 4-bit johnson counter contains 4 D flip-flops and it counts 8 no.of cycles. The inverted output of the last flip-flop is fed back as input to the first flip-flop. From the figure, ABCD is the outputs of the flip-flop in the 4-bit pattern. The input value of ‘D’ is the inverted output of the last flip-flop.
