A: The cell constant, K, is equal to the distance in cm between the probe’s electrodes divided by the surface area of the electrodes in cm2. For solutions with low conductivities the electrodes can be placed closer together or made larger so that the cell constant is less than one.
Which is the unit of cell constant?
For a given cell, the ratio of separation (l) between the two electrodes divided by the area of cross section (a) of the electrode is called the cell constant. The SI unit of cell constant is m−1.
What is SI unit of cell constant for conductivity cell?
Solution. The S.I. unit of cell constant for conductivity cell is m-1.
What is the unit of cell content?
A unit cell is the smallest portion of a crystal lattice that shows the three-dimensional pattern of the entire crystal. A crystal can be thought of as the same unit cell repeated over and over in three dimensions. The Figure below illustrates the relationship of a unit cell to the entire crystal lattice.
What are the units of cell constant how cell constant is calculated?
There are units of 1/cm (per centimetre) for a cell constant, where the sum corresponds to the ratio of the distance between the electrode plates and the plate surface area. Usually, the cell constant is calculated by calculating the resistance of a solution containing a cell whose conductivity is already defined.
What is the unit of molar conductance?
siemens metres squared per mole
κ is the measured conductivity (formerly known as specific conductance), c is the molar concentration of the electrolyte. The SI unit of molar conductivity is siemens metres squared per mole (S m2 mol−1).
What is cell constant and its unit in chemistry?
The cell constant of a conductor is defined as the ratio of a length of the conductor to the area of a cross-section of the conductor. It is denoted by G*. G∗=l/A. Unit of Cell constant = Unit of Length / Unit of area. =cm/cm2.
How do you find the cell constant?
Cell constant (k) is directly proportional to the distance separating the two conductive plates and inversely proportional to their surface area. K = L/a, where a(area) = A x B.
What is the SI unit of K?
kelvin
The kelvin, symbol K, is the SI unit of thermodynamic temperature. It is defined by taking the fixed numerical value of the Boltzmann constant k to be 1.380 649 x 10–23 when expressed in the unit J K–1, which is equal to kg m2 s–2 K–1, where the kilogram, metre and second are defined in terms of h, c and ΔνCs.
What is cell constant?
Cell constant is defined as the ratio of the distance between conductance-titration electrodes to the area of electrodes, measured from the determined resistance of the solution of specific conductance. Unit of cell constant is cm-1 .
What is a cell constant?
What is the cell constant of KCl?
The cell constant is usually determined by measuring the resistance of the cell containing a solution whose conductivity is already known. For this purpose, we generally use KCl solutions whose conductivity is known accurately at various concentrations and at different temperatures. The cell constant, G*, is then given by the equation:
What is the K constant of a conductive cell?

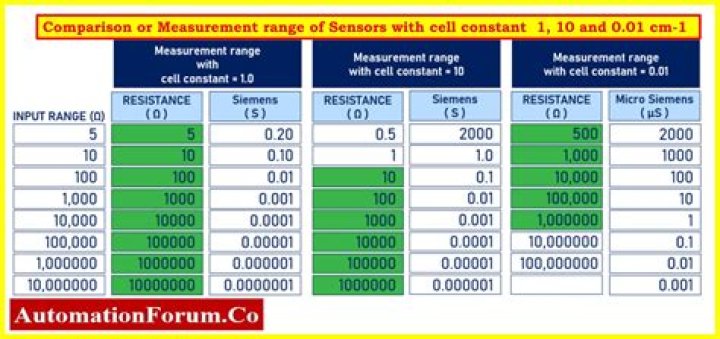

Cells with constants of K = 0. 1 or less normally have large closely spaced electrodes. Since K (cell constant) is a “factor” that reflects a particular cell’s physical configuration, it must be multiplied by the observed conductance to obtain the actual conductivity reading. (see Water resistivity measurement)
What is k equal to in SI units?
The Coulomb constant, the electric force constant, or the electrostatic constant (denoted ke, k or K) is a proportionality constant in electrostatics equations. In SI units it is equal to 8.9875517923 (14)×109 kg⋅m3⋅s−2⋅C−2. What is K in kq1q2 R 2? Coulomb’s law: F = kqQ / r2. the constant k = 8.99 x 109 N m2 / C2.
How do you calculate the K of a cell?
Because it is normally impossible to measure the fringe-field effect and the amount of AR to calculate the cell constant, K, the actual K of a specific cell is determined by a comparison measurement of a standard solution of known electrolytic conductivity. The most commonly used standard solution for calibration is 0.01 M KCl.
