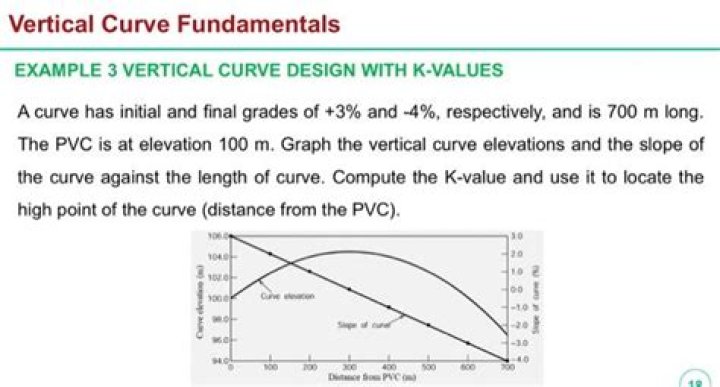

K-Value. This value represents the horizontal distance along which a 1% change in grade occurs on the vertical curve. It expresses the abruptness of the grade change in a single value. Speed tables or other design tools often provide a target minimum K value.
How do you find the radius of a vertical curve?
Unable Calculate Vertical Curve Length Using Radius
- Length of Curve – specifies the length of the vertical curve.
- r=(g2-g1)/L – specifies the rate of change.
- Middle Ordinate – specifies the middle ordinate or external distance.
- Pass-through – specifies the pass-through point by station and elevation.
How do you calculate the grade of a vertical curve?
Ease of computation of vertical offsets, which permits easily computed curve elevations. The slope of this curve at any point is given by the first derivative, dy/dx = 2ax + b The rate of change of slope is given by the second derivative, d2y/dx2 = 2a 2a is a constant.
What is K-value transportation?
Answer. The K-value is the horizontal distance required to achieve a 1% change in the slope of the vertical curve.
What is vertical curves in engineering surveying?
A vertical curve provides a transition between two sloped roadways, allowing a vehicle to negotiate the elevation rate change at a gradual rate rather than a sharp cut. These curves are parabolic and are assigned stationing based on a horizontal axis.
What is meant by vertical curve?
i. The curve between two lengths of a straight roadway that possess different gradients. The curve provides a gradual change for haulages from one inclination to the other. The curve leading to the top or brow of an inclined plane would be convex and at the bottom would be concave.
What is the vertical curve?
How do you find the radius of a horizontal curve?
Example 1: Curve RadiusEdit At one horizontal curve, the superelevation has been set at 6.0% and the coefficient of side friction is found to be 0.10. Determine the minimum radius of the curve that will provide safe vehicle operation. Solution: R = v 2 g ( e + f s ) = ( 110 ∗ ( 1000 / 3600 ) ) 2 9.8 ( .
What is vertical curve length?
L=length of vertical curve (m) S=sight distance (m) A=algebraic difference in grades (%) The rate of vertical curvature (K) is equal to the length of the vertical curve (L) divided by the algebraic difference in the tangent grades (A) in percent (K=L/A).
What are the vertical curves?
What is k value in grade curve?
This value represents the horizontal distance along which a 1% change in grade occurs on the vertical curve. It expresses the abruptness of the grade change in a single value. Speed tables or other design tools often provide a target minimum K value.
How do I find the minimum k value for profile curves?
Speed tables or other design tools often provide a target minimum K value. The criteria-based design feature automatically validates profile curve design against local design standards. A.A.S.H.T.O. tables defining minimum K values at given speeds are provided in the customizable design criteria file.
How do you change the k value?
It’s been my understanding that the K value is a relationship between the length of the curve (any type of curve) and the grade change from the beginning to the end of the curve. To change a K value one needs to make a curve longer or shorter. 07-10-2019 02:39 AM
What is the value of K for a parabolic curve?
Normally the value of “k” is the length of the parabolic curve divided by the algebraic difference of the two profile tangents grades.
