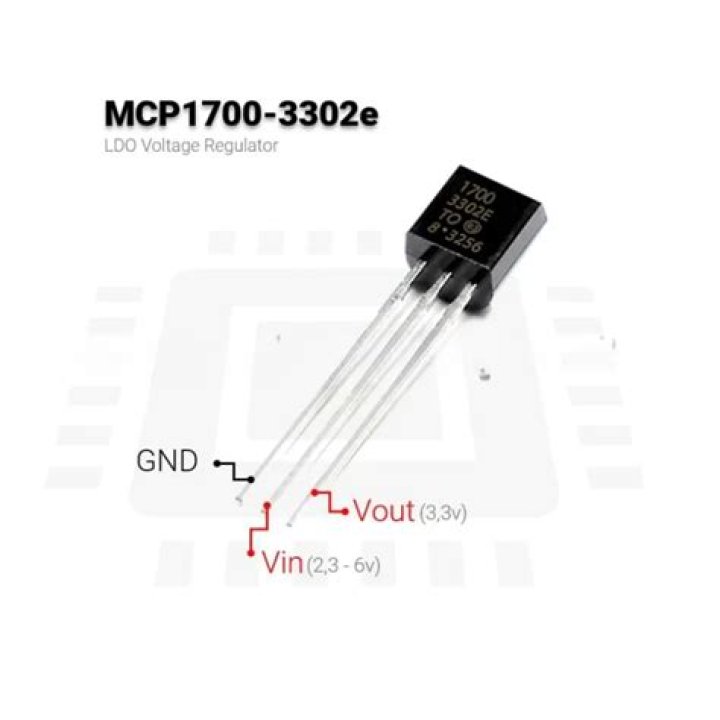

The MCP1700 is a family of CMOS low dropout (LDO) voltage regulators that can deliver up to 250 mA of current while consuming only 1.6µA of quiescent current (typical). The MCP1700 is capable of delivering 250 mA with only 178mV of input to output voltage differential (VOUT =2.8V).
What is LDO power supply?
A low-dropout regulator (LDO regulator) is a DC linear voltage regulator that can regulate the output voltage even when the supply voltage is very close to the output voltage.
What is LDO in laptop?
LDO, which stands for Low Dropout, can operate at a low potential difference between input and output. It is sometimes referred to as a low-loss or saturation type linear regulator.
What is LDO voltage in laptop motherboard?
An LDO (low-dropout) is a linear voltage regulator designed to operate with a very low input-to-output voltage differential (dropout voltage). It aims to minimize the power dissipated as heat on the device and increase conversion efficiency.
How is LDO made?
Light diesel oil, or LDO, is a blend of components from the distillation process of crude. It is used in engines with an rpm less than 750, such as boilers and furnaces. LDO is also referred to as distillate fuel or marked oil.
What are the advantages of boost converter?
Benefits or advantages of Buck Boost Converters ➨Buck converter offers most efficient solution with smallest external components. ➨It performs step-up or step-down of voltage using minimum components. ➨It offers lower operating duty cycle. ➨It offers high efficiency across wide input and output voltage ranges.
What is the difference between LDO and switching regulator?
LDOs are low-noise alternatives to switching regulators. They are simpler to layout and tend to cost less. LDOs are sometimes used downstream from a switching regulator to further step down the voltage to a low level. In fact, some switching regulator components include an LDO on the output; see ADP5037 for an example.
How do I check my LDO quality?
The most accurate method of assessing the ignition quality of a diesel fuel is by measuring its cetane number in a test engine, the higher the cetane number the higher the ignition quality.
What are boost converter used for?
The boost converter is used to “step-up” an input voltage to some higher level, required by a load. This unique capability is achieved by storing energy in an inductor and releasing it to the load at a higher voltage.
