Current indicated on the nameplate corresponds to the rated power output together with voltage and frequency. Current may deviate from the nameplate amperes if the phases are unbalanced or if the voltage turns out to be lower than indicated.

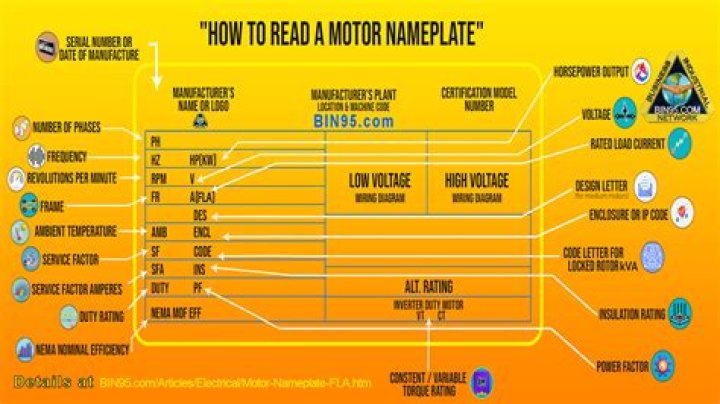

What is found on a motor nameplate?
The nameplate-defined parameters for the motor – such as power factor, efficiency, torque and current – are at rated voltage and frequency. When the motor is used at other voltages than the voltage indicated on the nameplate, its performance will be affected.
What is motor rated current?
The current drawn by a motor at its full load, calculated using formula is known as the rated current. Motor windings are designed to carry the rated current during normal operations and slightly higher than it for shorter duration.
What is the full load current of a motor?
A full load current is the largest current that a motor or other device is designed to carry under particular conditions. The starters shall be suitably rated to continuously carry the full load current of the motor and also accept the starting current surges without tripping.
How do I find my motor details without nameplate?
Use a strobe tachometer to determine motor RPM and then set up a generic motor in the database for that RPM. If loading cannot be provided by the operator use the acquired data and RPM to approximate loading. You can view the power factor for a value around 88 to 92 to approximate full load.
What value is found on a motor nameplate?
The nameplate includes the based speed given in RPM. Base speed is where the motor develops rated horsepower at rated voltage and frequency. Base speed indicates how fast a fully-loaded output shaft will turn the connected equipment when proper voltage and frequency is applied.
What is the starting current of a motor?
Starting current is the current required to start a motor from stand-still condition. It is essential that a high current is required for producing starting torque. Generally starting current is 6 – 8 times FLC (full load current). This data is essential for selecting rating of Circuit Breaker or Fuses.
How do you calculate motor overload current?
Divide by the rated full load current from the motor nameplate. This will be the load factor for the motor. If the motor current is 22A and the rated full load current is 20A, then the load factor is 22/20 = 1.1. This means the motor is overloaded by 10%.
What is a motor code?
The nameplates of alternating current (AC) motors built to National Electrical Manufacturers Association (NEMA) standards reference a system of alphabetical letters that designate the principal characteristics of each motor—code, design and insulation class. …
What does the nameplate of a motor include?
The nameplate includes the based speed given in RPM. Base speed is where the motor develops rated horsepower at rated voltage and frequency. Base speed indicates how fast a fully-loaded output shaft will turn the connected equipment when proper voltage and frequency is applied. The sample motor has a base speed of 1185 RPM at 60 Hz.
Why is my motor’s output speed higher than the nameplate?
If the connected equipment operates at less than full load, the output speed (RPM) will be slightly greater than what’s stated on the nameplate. When an electric motor is designed to operate at its nameplate horsepower rating, it has a service factor of 1.0, meaning it can operate at 100% of its rated horsepower.
What does the nameplate for a two-pole 15 kW motor mean?
The nameplate for a two-pole 15 kW motor may have the following important data: The motor has three phases and is for a mains supply with a frequency of 50 Hz. The rated output of the motor is 15 kW, i.e. the motor is able to supply a shaft output of at least 15 kW if connected to the mains supply as indicated.
What is the nameplate rating of a 480V motor?
For example, the nameplate rating of a 480V, 3-phase, 50-hp motor may only be 60A, taking into account the lowest running power factor and efficiency level. However, the NEC table value is 65A.
