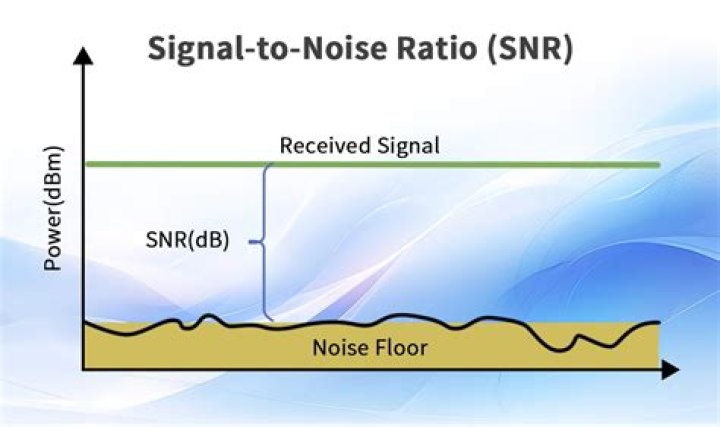

In terms of definition, SNR or signal-to-noise ratio is the ratio between the desired information or the power of a signal and the undesired signal or the power of the background noise. In other words, SNR is the ratio of signal power to the noise power, and its unit of expression is typically decibels (dB).
What is signal-to-noise and distortion ratio?
Signal-to-noise and distortion ratio: The RMS value of the sine wave f(IN) (input sine wave for an ADC, reconstructed output sine wave for a DAC) to the RMS value of the converter noise from DC to the Nyquist frequency, including harmonic content. It is typically expressed in dB (decibels).
How do you calculate signal to interference ratio?
The signal-to-interference ratio (SIR or S/I), also known as the carrier-to-interference ratio (CIR or C/I), is the quotient between the average received modulated carrier power S or C and the average received co-channel interference power I, i.e. crosstalk, from other transmitters than the useful signal.
What is the difference between SNR and CNR?
Contrast-to-noise ratio (CNR) is a measure used to determine image quality. CNR is similar to the metric signal-to-noise ratio (SNR), but subtracts a term before taking the ratio. Signal-to-noise ratio (SNR or S/N) compares the level of a desired signal to the level of background noise.
What is signal-to-noise ratio?
Signal-to-noise ratio (SNR or S/N) is a measure used in science and engineering that compares the level of a desired signal to the level of background noise. SNR is defined as the ratio of signal power to the noise power, often expressed in decibels.
Why is signal-to-noise ratio important?
A signal-to-noise ratio compares a level of signal power to a level of noise power. It’s most often expressed as a measurement of decibels (dB). Higher numbers generally mean a better specification since there’s more useful information (the signal) than unwanted data (the noise).
What is signal to noise ratio in ADC?
SNR is a calculated value that represents the ratio of rms signal to rms noise. You then multiply the log10 of this ratio by 20 to derive SNR in decibels. As I mention above, an ADC’s ideal SNR equals 6.02N+1.76 dB, where N is the number of bits.
How do you calculate signal-to-noise ratio SNR?
SNR Calculation – Simple If your signal and noise measurements are already in dB form, simply subtract the noise figure from the main signal: S – N. Because when you subtract logarithms, it is the same as dividing normal numbers. The difference of the numbers is the SNR.
How is CNR calculated?
Contrast-to-noise ratio (CNR) is just the ratio of the estimated contrast and noise: CNR = C/N.
What is the difference between EB No and SNR?
Eb/N0 is equal to the SNR divided by the “gross” link spectral efficiency in (bit/s)/Hz, where the bits in this context are transmitted data bits, inclusive of error correction information and other protocol overhead.
What is signal-to-noise ratio in spectroscopy?
The signal-to-noise ratio is a measure of the quality of a peak that is proportional to the square root of the number of scans used to measure a spectrum. From: Spectroscopy of Polymer Nanocomposites, 2016.
What is signal to interference plus noise ratio (SINR)?
Signal-to-interference-plus-noise ratio. Analogous to the SNR used often in wired communications systems, the SINR is defined as the power of a certain signal of interest divided by the sum of the interference power (from all the other interfering signals) and the power of some background noise.
How does measuring signal-to-noise ratio work?
Measuring signal-to-noise ratios requires the selection of a representative or reference signal. In audio engineering, the reference signal is usually a sine wave at a standardized nominal or alignment level, such as 1 kHz at +4 dBu (1.228 V RMS).
What is the difference between noise and interference?
The term is often used to refer to the addition of unwanted signals to a useful signal. Common examples include: Inter-carrier interference (ICI), caused by doppler shift in OFDM modulation (multitone modulation). Noise is a form of interference but not all interference is noise.
What is interference in telecommunications?
In telecommunications, an interference is that which modifies a signal in a disruptive manner, as it travels along a communication channel between its source and receiver. The term is often used to refer to the addition of unwanted signals to a useful signal. Common examples are:
