8 point radix-2 DIT-FFT: FFT is an algorithm to convert a time domain signal to DFT efficiently. FFT is not unique. In each algorithm, depending on the sequence needed at the output, the input is regrouped.
What is the computation of radix 2 FFT algorithm of DFT?
The radix-2 algorithms are the simplest FFT algorithms. The decimation-in-frequency (DIF) radix-2 FFT partitions the DFT computation into even-indexed and odd-indexed outputs, which can each be computed by shorter-length DFTs of different combinations of input samples.
What is radix 2 FFT in DSP?
When is a power of , say where is an integer, then the above DIT decomposition can be performed times, until each DFT is length . A length. DFT requires no multiplies. The overall result is called a radix 2 FFT.
How many stages are there in a 128 point radix 2 FFT algorithm?
7 stages
The system does go through each of the 7 stages, varying the number of blocks per stage, and other arguments to compute each state correctly.
What is Radix 4 FFT?
Radix-4 FFT Algorithm The radix-4 DIF FFT divides an N-point discrete Fourier transform (DFT) into four N 4 -point DFTs, then into 16 N 16 -point DFTs, and so on. In the radix-2 DIF FFT, the DFT equation is expressed as the sum of two calculations.
Is Radix 2 FFT algorithm more effective than radix-4 algorithm justify your answer?
turns out that the radix-4 FFT is a little more efficient than the radix-2 so you might want to replace 8 contiguous passes of the radix-2 FFT with 4 passes of a radix-4 FFT and one final (or one initial) pass using 2-point butterflies. that is a split-radix FFT.
Which diagram is used in DIT algorithm?
In this correspondence the analysis of overall quantization loss for the Fast Fourier Transform (FFT) algorithms is extended to the case where the twiddle factor word length is different from the register word length.
What is radix 2 and radix 4 FFT?
A stage is half of radix-2. The radix-4 DIF FFT divides an N-point discrete Fourier transform (DFT) into four N 4 -point DFTs, then into 16 N 16 -point DFTs, and so on. In the radix-2 DIF FFT, the DFT equation is expressed as the sum of two calculations.
Why the algorithm is named as radix 2 Fast Fourier Transform algorithm *?
Radix-2 DIT divides a DFT of size N into two interleaved DFTs (hence the name “radix-2”) of size N/2 with each recursive stage. , and then combines those two results to produce the DFT of the whole sequence. This idea can then be performed recursively to reduce the overall runtime to O(N log N).
How many multiplications and additions are required to realize a 128 point radix 2 FFT using dit?
So, it requires 4N real multiplications and 4N-2 real additions for any value of ‘k’ to compute DFT of the sequence. 3.
How many multiplications and additions are involved in Radix 2 FFT?
The number of multiplications and additions required to compute N-point DFT using redix-2 FFT are N log2N and N/2 log 2N respectively.
What is the radix-2 DIT FFT algorithm?
The same radix-2 decimation in time can be applied recursively to the two length N2 N 2 DFTs to save computation. When successively applied until the shorter and shorter DFTs reach length-2, the result is the radix-2 DIT FFT algorithm.
What is the radix-2 decimation in time algorithm?

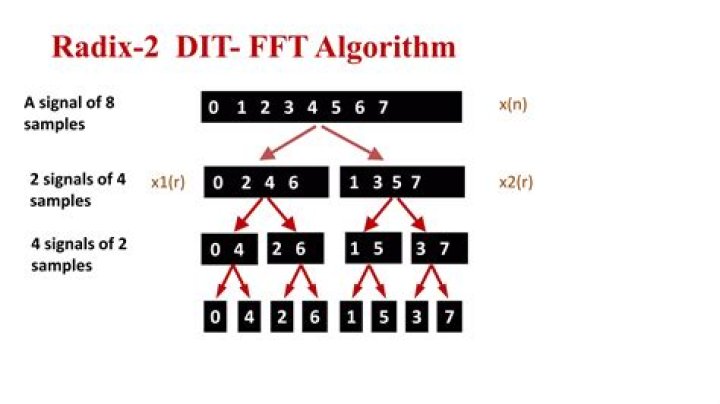

The simplest and perhaps best-known method for computing the FFT is the Radix-2 Decimation in Time algorithm. The Radix-2 FFT works by decomposing an N point time domain signal into N time domain signals each composed of a single point.
How is the radix-2 FFT used to perform optimal reconstruction?
Optimal reconstruction of the complete frequency spectrum is performed using butterfly calculations. Each reconstruction stage in the Radix-2 FFT performs a number of two point butterflies, using a similar set of exponential weighting functions, Wn^R.
How do you convert radix to magnitude and phase in FFT?
To convert to magnitude and phase (polar coordinates) requires finding the absolute value, √ (Re2 + Im2), and argument, tan-1 (Im/Re). The complete butterfly flow diagram for an eight point Radix 2 FFT is shown below. Note the input signals have previously been reordered according to the decimation in time procedure outlined previously.
