The resonant frequency f0 of the RLC circuit is the frequency at which the amplitude of the current is a maximum and the circuit would oscillate if not driven by a voltage source. By inspection, this corresponds to the angular frequency ω0=2πf0 at which the impedance Z in Equation 15.6.1 is a minimum, or when. ω0L=1ω0C.
What is Neper frequency?
α is called the neper frequency, or attenuation, and is a measure of how fast the transient response of the circuit will die away after the stimulus has been removed. Neper occurs in the name because the units can also be considered to be nepers per second, neper being a unit of attenuation.
How do you find the frequency of a RLC circuit?
f0=12π√LC f 0 = 1 2 π L C , where f0 is the resonant frequency of an RLC series circuit. This is also the natural frequency at which the circuit would oscillate if not driven by the voltage source.

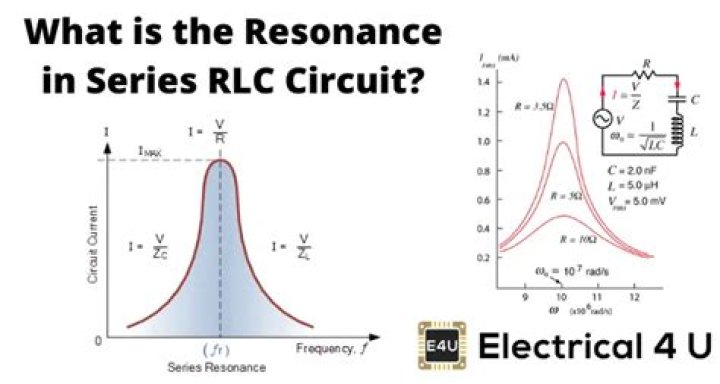

What happens when RLC circuit is in resonance?
At resonance in series RLC circuit, both inductive and capacitive reactance cancel each other and we know that in series circuit, the current flowing through all the elements is same, So the voltage across inductor and capacitor is equal in magnitude and opposite in direction and thereby they cancel each other.
What is the resonant frequency of series RLC circuit?
What is resonant frequency in series RLC circuit?
The resonant frequency of the series RLC circuit is expressed as. fr = 1/2π√(LC) At its resonant frequency, the total impedance of a series RLC circuit is at its minimum. It also means that the current will peak at the resonant frequency as both inductor and capacitor appear as a short circuit.
What is XL in RLC?
In series RLC circuit, the condition XL(Inductive reactance) = XC (Capacitive reactance) is called resonance condition. In this condition the inductive reactance get cancelled by capacitive reactance. So,the entire RLC series circuit just acts as a resistive circuit.
What is the power absorbed by an RLC circuit at resonance?
If the series RLC circuit is driven by a variable frequency at a constant voltage, then the magnitude of the current, I is proportional to the impedance, Z, therefore at resonance the power absorbed by the circuit must be at its maximum value as P = I2Z.
What is the Schumann earth resonance?
The earth itself vibrates as a resonance of 7.83Hz and better known as the “Schumann Resonance. MP3 available for sale HERE: This vibration is considered the natural state of everything. Brainwaves 7.83 Hz – Schumann earth resonance.
What is the frequency response behaviour of a series RLC circuit?
Also what would the circuits “frequency response” behaviour be upon the two reactive components due to this varying frequency. In a series RLC circuit there becomes a frequency point were the inductive reactance of the inductor becomes equal in value to the capacitive reactance of the capacitor.
What is the frequency at which the Earth vibrates?
The earth itself vibrates as a resonance of 7.83Hz and better known as the “Schumann Resonance.
