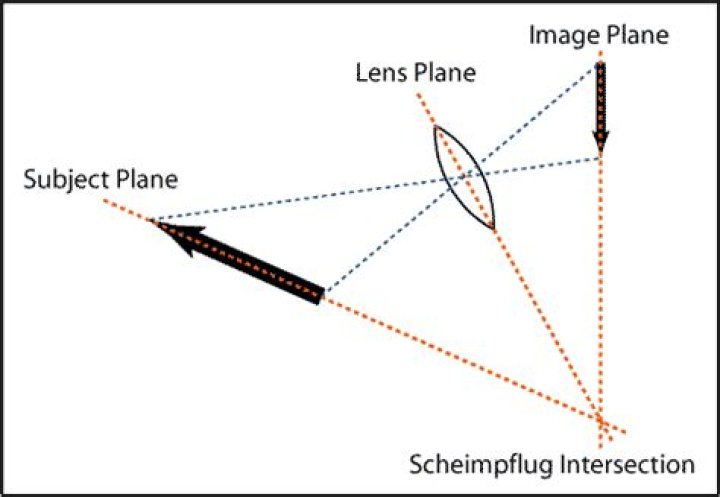

The Scheimpflug principle is a description of the geometric relationship between the orientation of the plane of focus, the lens plane, and the image plane of an optical system (such as a camera) when the lens plane is not parallel to the image plane.
What is Scheimpflug image?
The Scheimpflug principle, first introduced by Theodor Scheimpflug, a cartographer of the Austrian navy, describes an optical imaging condition, which allows documentation of an obliquely tilted object with the maximally possible depth of focus and minimal image distortion.
What is the plane of focus?
The plane of focus is a two-dimensional ‘plane’ in front of the camera at the point of focus. This plane will give you the sharpest focus at a particular depth of field. This is an imaginary plane and lies parallel to the camera sensor, (unless using a something like a tilt-shift lens.
Which of the following types of cameras have a two part design that is joined in the middle by flexible bellows?
view camera
A view camera has a very distinctive 2-part design that is joined in the middle by a flexible bellows.
How does Scheimpflug imaging work?
The rotational Scheimpflug camera takes up to 50 cross-sectional images on an angle from 0 to 180° in a single scan, acquiring 25 000 data points in approximately 2 seconds. The second camera is static and used to monitor eye fixation and detects pupil size.
What is back focal plane?
A focal plane located in the opposite side of the object (plane) with respect to a lens is called the back focal plane. A diffraction pattern is formed on the “back focal plane,” thus the plane corresponds to the reciprocal space of the specimen.
What is first focal plane on a rifle scope?
A first focal plane (FFP) scope is one in which the reticle appears to change size as you adjust the magnification. The reticle appears small when zoomed out and large when zoomed in. A one mil mark in your crosshairs, for example, will stay constant throughout the range of magnification.
When was the large format camera invented?
In the early 1920s, Leica’s Oskar Barnack invented the 135 still-camera format, taking 35mm cine film and turning it 90 degrees to run horizontally through the camera at 8 perforations per image and creating the 24mm x 36mm frame.
What does corneal topography diagnose?
A corneal topography test provides detailed 3D maps of the cornea’s shape and curvature and enables detection of corneal diseases, and irregular corneal conditions, such as swelling, scarring, abrasions, deformities, and irregular astigmatisms.
