The RLC filter is described as a second-order circuit, meaning that any voltage or current in the circuit can be described by a second-order differential equation in circuit analysis. The three circuit elements, R, L and C, can be combined in a number of different topologies.
Why is RLC circuit second order?
Set up a typical RLC parallel circuit If the inductor current doesn’t change, there’s no inductor voltage, implying a short circuit. The RLC parallel circuit is described by a second-order differential equation, so the circuit is a second-order circuit.
What is a second order circuit?
Second-order circuits are RLC circuits that contain two energy storage elements. They can be represented by a second-order differential equation. A characteristic equation, which is derived from the governing differential equation, is often used to determine the natural response of the circuit.
What is a 2nd order circuit?
Which of the following are second-order circuits?
Circuits that include an inductor, capacitor, and resistor connected in series or in parallel are second-order circuits. Here are second-order circuits driven by an input source, or forcing function.
How do you calculate current in an RLC circuit?
The current Irms can be found using the AC version of Ohm’s law in Equation Irms=Vrms/Z. Irms=VrmsZ=120V531Ω=0.226Aat60.0Hz.
What is RLC series circuit?
An RLC circuit is an electrical circuit consisting of a resistor (R), an inductor (L), and a capacitor (C), connected in series or in parallel. The name of the circuit is derived from the letters that are used to denote the constituent components of this circuit, where the sequence of the components may vary from RLC.
What is the impedance of a RLC circuit?

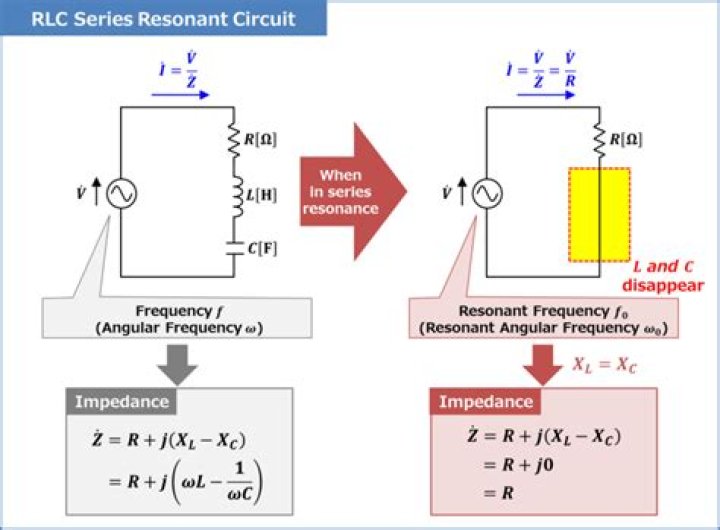

RLC Series Circuit. The RLC series circuit is a very important example of a resonant circuit. It has a minimum of impedance Z=R at the resonant frequency, and the phase angle is equal to zero at resonance.
What is second order system?
A second-order linear system is a common description of many dynamic processes. The response depends on whether it is an overdamped , critically damped, or underdamped second order system.
