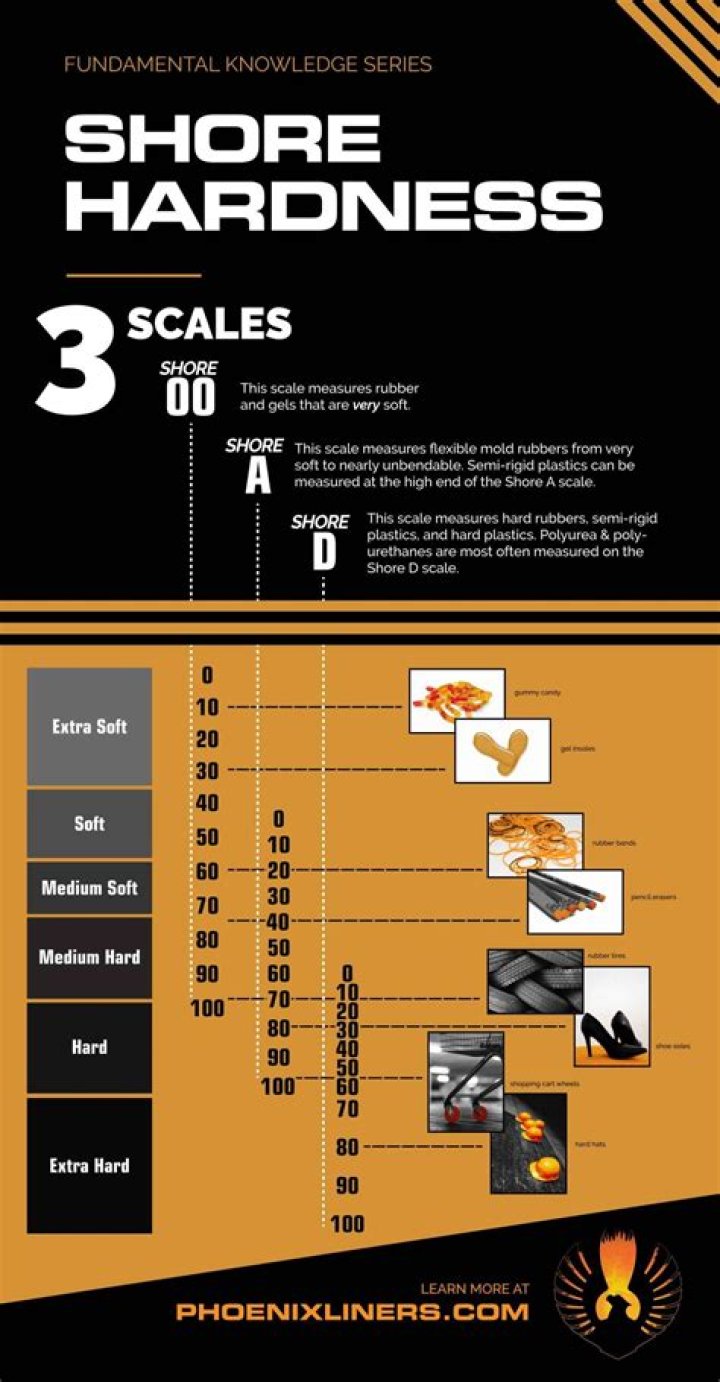

Shore D Hardness is a standardized test consisting in measuring the depth of penetration of a specific indenter. Test methods used to measure Shore D Hardness are ASTM D2240 and ISO 868. Shore Hardness measures are dimensionless. It goes between 0 and 100. The higher number represents the harder material.
What is 70a durometer?
hardness
The hardness of rubber compounds is measured by the Shore A durometer; the higher the durometer, the harder the compound. 70-durometer hardness should be used whenever possible as it offers the best combination of properties for most O-Rings applications.
How do you use durometer Shore D?
Testing
- Place the sample on a flat, hard, horizontal surface.
- Hold the durometer between both hands over the sample so that the indentor touches it.
- Push down perpendicularly until the presser foot makes firm contact with the sample.
- Take a reading.
What is 50 Shore A hardness?
There are other Shore hardness scales, such as Shore O and Shore H, but they are rare within the plastics and rubber industry….Rubber hardness examples and applications – A rated.
| 25 – 35 Shore A | Rubber bands |
| 50 Shore A | Rubber stamps |
| 55 Shore A | Door seals and Pencil erasers |
How hard is 70A durometer?
A 70A rubber (as hard as a car tire) is stiff and would not offer enough flexibility to extract this model without breaking it. A better choice would be a Shore 30A rubber or softer that would offer enough flexibility to easily extract the model.
How do you test D hardness on shore?
Shore hardness is tested with an instrument called Durometer. Durometer utilizes an indenter loaded by a calibrated spring. The measured hardness is determined by the penetration depth of the indenter under the load.
How hard is 60 Shore?
There are different Shore Hardness scales for measuring the hardness of different materials, such as soft rubbers, rigid plastics and supersoft gels….Some D rated examples.
| 75 Shore D | Hard hat (typically HDPE) |
| 80 Shore D | Cast urethane plastic |
| 60 Shore D | Golf balls |
| 80 Shore D | Paper-making rolls |
What is Shore durometer hardness in polymers?
The Shore durometer is a device for measuring the hardness of a material, typically of polymers, elastomers, and rubbers. Higher numbers on the scale indicate a greater resistance to indentation and thus harder materials. Lower numbers indicate less resistance and softer materials.
