Sinusoidal pulse width modulation is a method of pulse width modulation used in inverters. An inverter produces an AC output voltage from a DC input by using switching circuits to simulate a sine wave by producing one or more square pulses of voltage per half cycle.
How do you explain pulse width modulation?
- Pulse-width modulation (PWM), or pulse-duration modulation (PDM), is a method of reducing the average power delivered by an electrical signal, by effectively chopping it up into discrete parts.
- The rate (or frequency) at which the power supply must switch can vary greatly depending on load and application.
What are the application of PWM in communication?
Applications of Pulse Width Modulation (PWM) PWM Techniques are used in Telecommunications for encoding purposes. Pulse Width Modulation helps in voltage regulation and thus finds its use in controlling Brightness in Smart Lighting Systems and also controls the speed of motors.
What is bipolar sinusoidal modulation?
The conversion is done by sending a PWM square signal into the half bridge control unit to generate bipolar switching and be filtered out to produce a sinusoidal AC output. The square signal is generated using pulse width modulation where a sinusoidal signal is compared with a triangular signal.
What is pulse width modulation in inverters?
Pulse-width modulation is the process of modifying the width of the pulses in a pulse train in direct proportion to a small control signal; the greater the control voltage, the wider the resulting pulses become.
What is pulse width modulation PWM and how does it work?
Pulse width modulation (PWM) is a modulation technique that generates variable-width pulses to represent the amplitude of an analog input signal. The output switching transistor is on more of the time for a high-amplitude signal and off more of the time for a low-amplitude signal.
What is sinusoidal pulse width modulation how is it obtained explain with the help of a neat diagram?

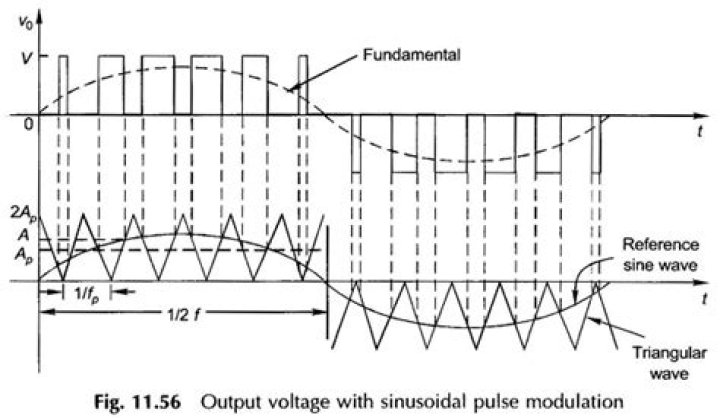

Sinusoidal Pulse Width Modulation In a simple source voltage inverter, the switches can be turned ON and OFF as needed. During each cycle, the switch is turned on or off once. The sinusoidal PWM waveform is obtained by comparing the desired modulated waveform with a triangular waveform of high frequency.
What is bipolar pulse width modulation?
Is pulse width modulation AC or DC?
Pulse width modulation uses transistors which switch the DC voltage on and off in a defined sequence to produce the AC output voltage and frequency. Most VFD’s today utilize insulated gate bipolar transistors or IGBT’s.
What are the disadvantages to pulse width modulation?
The complexity of the circuit
What is the purpose of using pulse width modulation?
Applications Servos. PWM is used to control servomechanisms; see servo control . Telecommunications. In telecommunications, PWM is a form of signal modulation where the widths of the pulses correspond to specific data values encoded at one end and decoded at the other. Electrical.
What do you mean by Pulse Width Modulation?
What Does Pulse Width Modulation (PWM) Mean? Pulse-width modulation (PWM) is a modulation process or technique used in most communication systems for encoding the amplitude of a signal right into a pulse width or duration of another signal, usually a carrier signal, for transmission.
What is meant by Pulse Width Modulation (PWM)?
Pulse-width modulation (PWM) is a modulation process or technique used in most communication systems for encoding the amplitude of a signal right into a pulse width or duration of another signal, usually a carrier signal, for transmission.
