A technique used to track faults in networks, such as cable breaks or loose connections. A pulse of a known shape is transmitted over the network and an echo is created when the pulse hits an obstacle or cable end.
How does Time Domain Reflectometry work?
A TDR works like radar. A fast rise time pulse is injected into the cable system at one end (near end). As the pulse travels down the cable, any change in the characteristic impedance (impedance discontinuities) will cause some of the incident signal to be reflected back towards the source.
Which device can determine the length of a cable?

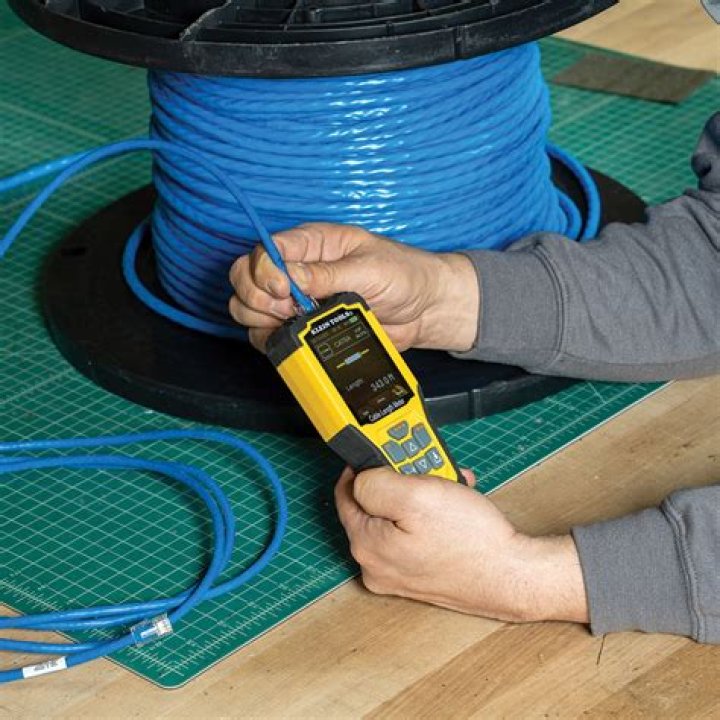

The cable length meter CableTool performs a precise measurement of the cable length by recording how long it takes an electric signal to cross through a cable and get back to the meter….
| Air flow meter | Accurate scales |
|---|---|
| Voltmeter | Temperature sensors |
| Weather stations | Vibration transducers |
Why is TDR used?
A time-domain reflectometer (TDR) is an electronic instrument used to determine the characteristics of electrical lines by observing reflected waveforms. It can be used to characterize and locate faults in metallic cables (for example, twisted pair wire or coaxial cable).
What TDR means?
Tasks, Duties and Responsibilities. TDR. Term Deposit Receipt (banking)
What can TDR be used for?
Why does the impedance rise in TDR?
The waveform given in the figure below is the result of an ideal pulse traveling through a transmission medium. A TDR setup produces an accurately controlled pulse with a fast rise time. This is the reason TDR impedance measurements are performed for better signal integrity (after correcting the discontinuities).
How far is a cable distance?
or cable length a nautical unit of length equivalent to 720 feet (219 meters) in the U.S. Navy and 608 feet (185 meters) in the British Navy. Also called cable.
How do TDR probes work?
Time-domain reflectometry (TDR) a TDR sensor measures the travel time of a reflected wave of electrical energy along a transmission line. The travel time is related to the charge storing capacity of the soil and the volumetric water content.
What is TDR in BBMP?
To accommodate the needs of growing cities and creating new and wider roads and transport solutions, the Bruhat Bengaluru Mahanagara Palike started something called Transfer of Development Rights ( TDR ) in 2005.
What is TDR tax?
The interest proceeds on the Term Deposit (e-TDR) under Tax Saving Scheme, will be credited by default to the account from which the Term Deposit (e-TDR) under Tax Saving Scheme was funded. Bank will deduct the income tax on interest as per the law applicable.
What does tdr900 stand for?
The Megger TDR900 time domain reflectometer (TDR) and cable length meter is a cable fault locator and length meter for identifying and locating faults in metallic cabling. The TDR is digital and autoranging, with automatic output impedance control and automatic sensitivity adjustment.
What is the Megger tdr900?
The Megger TDR900 is an instrument capable of measuring cable lengths and finding distance to an open or a short using time domain reflectometry. It offers exceptional features and a range capability normally associated with far more expensive instruments. The measurement range spans from 5 m to 3 km with a minimum resolution of 50 cm.
What type of cables can be tested with the tdr900?
The TDR900 can be used for any cable consisting of at least two insulated metallic elements, one of which may be the sheath or shield of the cable. The Meter has automatic internal matching networks to allow testing of 25Ω, 50Ω, 75Ω, 100Ω, 125Ω, or 150Ω cables. (These correspond to power, telephony, CATV, and LAN cables.)
How many VOP settings are available on the TDR?
The TDR is digital and autoranging, with automatic output impedance control and automatic sensitivity adjustment. The internal memory stores up to 20 custom cable velocity of propagation (V.O.P.) settings and has an internal library of 39 standard cable VOP settings.
