First-angle projection: In this type of projection, the object is imagined to be in the first quadrant. Again, as the observer is normally supposed to look from the right side of the quadrant to obtain the front view, in this method, the projection plane comes in between the observer and the object.
What are the three basic views used in first angle projection?
The front, side and plan views have drawn around the 3D shape. However this is not the correct way of drawing them as they are not in the right positions. The correct method of presenting the three views, in first angle orthographic projection is shown below.
How do you read 1st and 3rd angle drawings?
The difference between first and third angle projection is in the position of the plan, front and side views. In third angle, what you see from the right would be drawn on the right. In first angle, the view from the right would be projected through and drawn on the left.
Which of the following is correct for 1st angle projection?
If an object is placed in 1st quadrant such that one of the surfaces of object is coinciding with horizontal plane, what is the correct position of views from the following? Explanation: In the first angle projection the projections of object is taken by placing object in 1st quadrant.
Which statement is correct for first angle projection?
Explanation: In first angle projection the object’s right side will be projected only if we watch from right side of object and the impression will fall to the left side of front view similar to the other side also so the right side view is placed on the left side of front view.
Which symbol represent the 1st angle projection?
cone
Drawing Projection Key Points: Large end of the cone nearest to the top view indicates the symbol for first angle projection. Small end of the cone nearest to the top view indicates the symbol for third angle projection.
Why do we use 1st angle and 3rd angle projection?
We consider that horizontal plane rotates in clockwise direction after having projection on it. that’s why we use 1st angle and 3rd angle projection. because only in this two quadrants we will get the both views after clockwise rotation of horizontal plane.

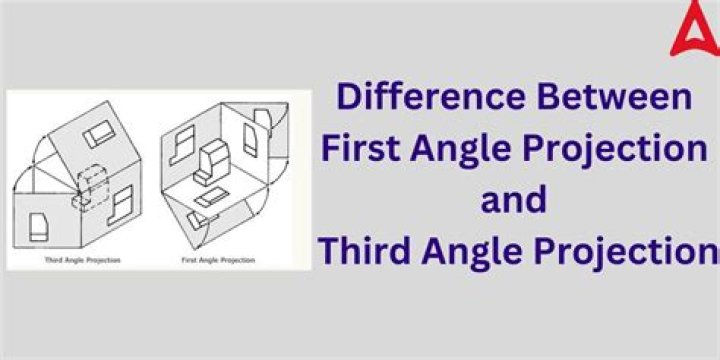

How do you differentiate between First and Third angle projection?
The orthographic projection system is used to represent a 3D object in a 2D plane….Difference between First Angle Projection and Third Angle Projection :
| SR.NO | First Angle Projection | Third Angle Projection |
|---|---|---|
| 7 | Left view is at the right side of vertical axis. | Left view is at the left side of vertical axis. |
How do you differentiate between first angle and third angle projection?
To get the first angle projection, the object is placed in the first quadrant meaning it’s placed between the plane of projection and the observer. For the third angle projection, the object is placed below and behind the viewing planes meaning the plane of projection is between the observer and the object.
What is difference between 1st angle and 3rd angle projection?
Third Angle VS First Angle. Description: Both third angle and first angle projection display the standard three orthographic views of a part or assembly. The key difference between third angle and first angle is the layout of the part on the sheet. Note: Changing the projection in the sheet properties will not update already inserted model views.
What is meant by first angle projection?
First angle projection is one of the methods used for orthographic projection drawings and is approved internationally except the United States. In this projection method, the object is placed in the first quadrant and is positioned in front of the vertical plane and above the horizontal plane.
What is first and third angle projection?
In third angle projection, the 3D object to be projected is placed in the third quadrant and is positioned behind the vertical plane and below the horizontal plane. Unlike in first angle projection where the plane of projection is supposedly opaque, the planes are transparent in third angle projection.
What is the definition of the first angle angle projection?
1st angle projection is a type of orthogonal projection system where the object is placed in the first quadrant in such a way that it lies in between the observer and the plane of projection. First angle projection system is widely used in European countries.
