For plain bearings, the value is normally 0.01 to 0.02 ; but, for certain cases, it is 0.1 to 0.2….Table 8-1 Friction coefficient μ
| Bearing type | Friction coefficientμ |
|---|---|
| Deep groove ball bearing | 0.0010～0.0015 |
| Angular contact ball bearing | 0.0012～0.0020 |
How do you calculate ball bearing friction?
Ball Bearing Frictional Torque
- You can calculate approximate figures for frictional torque using this simple formula:
- Radial ball bearings: 0.5 x 0.0015 x radial load in Newtons* x bearing bore (mm)
- Axial ball bearings: 0.5 x 0.0013 x axial load in Newtons* x bearing bore (mm)
How do you calculate bearing loss?
Where bearings are fitted with contact seals, the frictional losses from the seals may exceed those generated in the bearing. Calculating values for these four sources of friction is complex….SKF model of bearing friction.
| Ploss | bearing frictional power loss [W] |
|---|---|
| M | total frictional moment [Nmm] |
| n | rotational speed [r/min] |
What is Petroff equation?
• Petroff’s equation is given as f = 2π2 (μns/p) (r/c) • (μns/p) & (r/c) are dimensionless parameters. • (μns/p) denotes the bearing modulus & (r/c) denotes clearance ratio.
Which bearing has least coefficient of friction?
Gas bearings
Gas bearings have the lowest friction levels. Friction in hydrodynamic and hydrostatic bearings is a function of lubricant viscosity and shear rate.
How do bearings reduce friction?
Bearings reduce friction by means of a rolling motion Bearings reduce friction by means of this rolling motion. The “rolling bearing”, with its rolling motion, reduces friction more than the “plain bearing” with its sliding motion, allowing for a greater decrease in the amount of energy consumption during rotation.
What is a ball bearing How does a ball bearing reduce friction?
Ball bearings use balls to separate two “races,” or bearing rings, to reduce surface contact and friction across moving planes. The rotation of the balls causes a reduced coefficient of friction when compared with flat surfaces rubbing against each other.
What is ball bearing in friction Class 8?
Hint: A ball bearing is a form of rolling-element bearing which uses balls to hold the bearing breed apart. A ball bearing is intended to reduce rotational friction and to accommodate radial and axial loads. It is done by using at least two races to hold the balls and distribute the loads through the balls.

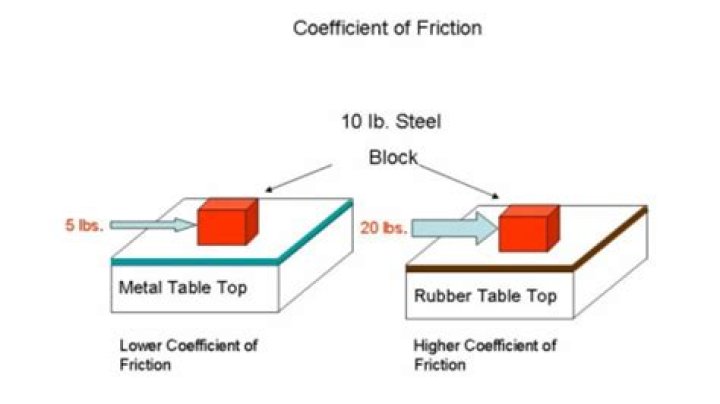

What does a lower coefficient of friction mean?
The coefficient of friction, µ, is a measure of the amount of friction existing between two surfaces. A low value of coefficient of friction indicates that the force required for sliding to occur is less than the force required when the coefficient of friction is high.
How do you calculate power loss due to friction?
In mechanical systems such as internal combustion engines, the term refers to the power lost by overcoming friction between two moving surfaces. friction loss = friction loss coefficient * ( flow rate / 100) 2 * hose length /100. FL = C* (Q/100)2 *L/100.
How do you measure the coefficient of friction?
Measuring Coefficient of Friction. A common method to measure the coefficient of friction on a floor involves a leather shoe heel, which has a 50lb weight placed on it before being put flat onto the floor it is being tested on.
How do the bearings reduce friction?
Bearings reduce friction by providing smooth metal balls or rollers, and a smooth inner and outer metal surface for the balls to roll against. These balls or rollers “bear” the load, allowing the device to spin smoothly.
How are coefficients of friction determined?
If this is measured immediately before the weight moves, this static coefficient of friction, and after it is moving, it is the kinetic coefficient of friction. It can easily be measured by applying forces to the weight and measuring its drag.
Does weight affect the coefficient of friction?
The ratio of the force required divided by the weight is your coefficient of friction. That’s what they want you to determine. Weight will have an effect on friction as the friction force is the friction coefficient * the normal force.
