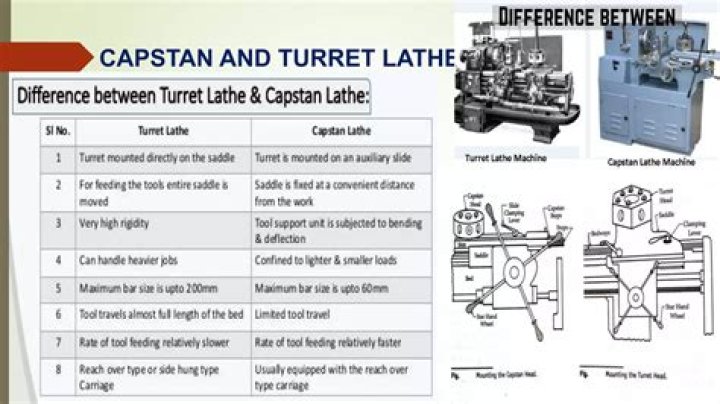

The Key Difference between Capstan and Turret Lathe is that Capstan Lathe is a light-duty machine. Turret Lathe is a heavy-duty machine.
What is the difference between capstan and turret lathe explain with help of suitable sketch?
In turret lathe the main turret is directly installed on the saddle and the saddle is move along the entire length of the lathe bed. Capstan lathe is ram type turret lathe and the movement of the ram is limited. In turret lathe the turret tool head is directly mounted on the saddle and they appear like a single unit.
What is the difference between a turret lathe and an engine lathe?
Turret lathe it acts like production machines while engine lathe is used for various types of odd jobs within limits. In capstan and turret lathe number of speeds is more in engine lathe number of speeds is less. Capstan and turret lathe is suitable for mass production while engine lathe is not suitable for that.
What are capstan lathes used for?
A capstan and turret lathe is a production lathe. It is used to manufacture any number of identical pieces in the minimum time. These lathes were first developed in the United States of America by Pratt and Whitney in 1960. Capstan lathe is one of the types of semi-automatic lathe.
What is capstan and turret lathe?
Capstan and Turret lathes are the advancement of the Engine lathes and center lathe, wherein the tailstock is replaced by a hexagonal turret tool head, having 6 different tools in the turret, where turret tool is rotate in each operation according to process requirement.
What are the major differences between capstan and turret lathe write down the name of the operations that can be done on a lathe?
The turret head can be moved crosswise i.e. in the lateral direction of bed in some turret lathe. In capstan lathe, Collet is used to grip the Job. In turret lathe, power Jaw chuck is used to grip the Job. Used for machining workpiece up to 60 mm diameter.
What is meant by capstan and turret lathe?
What is capstan lathe machine?
A capstan lathe is a milling machine used to create the same parts over and over again. The cutting bits are mounted on a rotatable turret known as a capstan, which allows the user to quickly change the orientation of the bits for cutting without having to take off the first bit and then mount the second.
What is advantage of turret lathe?
The advantages of Capstan and Turret Lathe is the following: The rate of production is higher Different ranges of speeds are obtained. A number of tools can be accommodated. Chucking of larger workpieces can be done. Operators of less skill are required hence lowers the labor cost.
What are the main parts of capstan and turret lathe?
Following are the main parts of a capstan and turret lathe,
- Bed.
- Headstock.
- Cross slide and saddle.
- The turret saddle and auxiliary slide.
What is turret in turret lathe?
A turret lathe is a semi-automatics lathe machine used for repetitive production of lathe parts. It is an advance from the already produced lathe machine because it has a hexagonal turret. The hexagonal turret is an indexable tool holder that can hold six tools at once.
What should be merits of capstan and turret lathe?
The advantages of Capstan and Turret Lathe is the following: The rate of production is higher • Different ranges of speeds are obtained. A number of tools can be accommodated. Chucking of larger workpieces can be done. Operators of less skill are required hence lowers the labor cost.
So let’s here go through the difference between them. It is a lightweight machine. It is a heavyweight machine. In capstan lathe, the turret tool head is mounted over the ram and that is mounted over the saddle. For providing feed to the tool, ram is moved.
What is a capstan and turret machine?
A Capstan and Turret machine is a creation machine. It is utilized to fabricate any number of indistinguishable pieces in the base time. It was modified of engine lathes. They were first created in United State of America by PRATT and WHITNEY in 1860.
What is the function of self-opening die in capstan lathe?
The function of the self-opening die is it opened automatically when the tool travel is stopped after the screw cutting operation. In capstan lathe, the turret tool head is mounted over the ram and that is mounted over the saddle. In turret lathe, the turret tool head is mounted over the saddle like a single unit.
What is turret tool indexing in capstan lathe?
For indexing turret tool head, the handwheel of the ram is reversed and turret tool index automatically. For indexing turret tool head, a turret is rotated manually after releasing clamping lever. Capstan lathe working operations are faster because of lighter in construction.
What is a turret lathe used for?
The Turret or Saddle Type Lathe The turret lathe is another type of lathe machine. It is used for repetitive production of same duplicate parts, which by the nature of their cutting process are usually replaceable. The hexagonal turret as shown in the figure.
