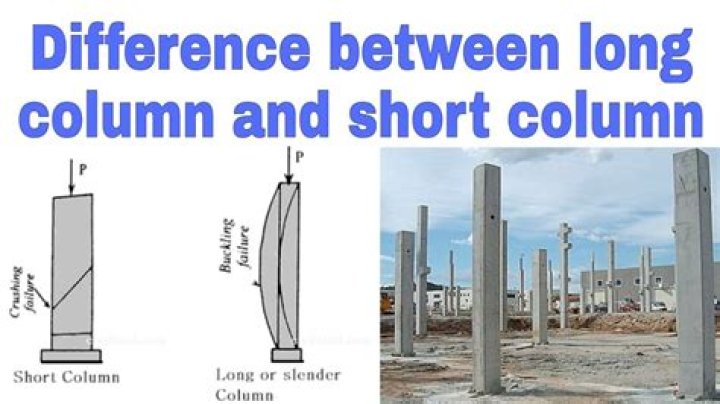

What Is Difference Between Long Column and Short Column? The column, whose lateral dimension is very small when compared to its length (or height), is called as long column. The column, whose lateral dimension is very large when compared to its length (or height), is called a short column.
What is the difference between short column and slender column?
Short columns have a large lateral dimension as compared to its height. Long columns have a small lateral dimension as compared to its height. The short column is stronger than a long column and it is highly preferable.
What does long column mean?
Definition of long column : a column so slender that it will fail under longitudinal load by bending rather than by crushing and typically having a length of 20 to 30 times the diameter.
What is the criterion for the column to consider as short and long column?
A column is said to be short if the ratio of effective length to its least lateral dimension is less than or equal to 12. A column is said to be long if the ratio of effective length of column to its least lateral dimension is greater than 12.
What is the difference between length and effective length?
The shortest distance between the top and bottom most points of the column at the point of bending is termed as length which effectively resists against the buckling. Effective length for a compression member depends upon the support conditions which are provided to it.
What is the difference between braced and Unbraced column?
Column is basically a vertical structure, which helps to transfer the load from top to bottom in a framed structure. Braced column are the structural component, provided so as to resist the lateral forces. Bracing prevents buckling of column section.
What is the effective length?
Effective length is a critical concept in Structural Design which relates to ‘the length of a component which is effectively restrained’. When designing structural members they can be subject to a number of forces such as Shear, Tension, Compression, Torsion and combinations of these to name but a few.
What is short column effect?
During past earthquakes, reinforced concrete (RC) frame buildings that have columns of different heights within one storey, suffered more damage in the shorter columns as compared to taller columns in the same storey. This behaviour is called Short Column Effect.
What is the effective length or height of column in column design?
Structurally effective length of column is defined as height between the points of contraflexure of the buckled column i.e. between two floors basically.
