vSphere Standard Switch is used to provide network connectivity for hosts, virtual machines and to handle VMKernel Traffic. Networking vMotion is not available in standard switch. vSphere Distributed switch. vSphere Distributed switch allows a single virtual switch to connect multiple Esxi hosts.
What is vSphere distributed switch?

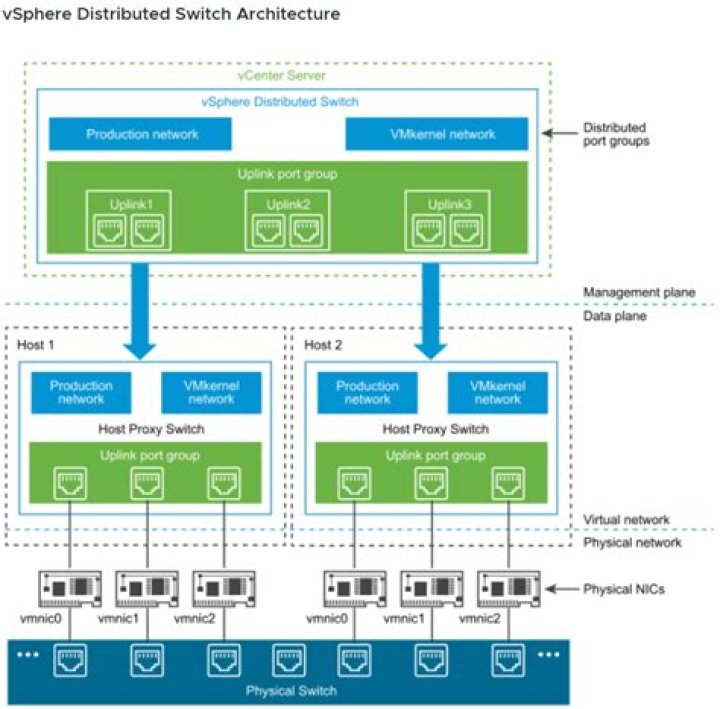

VMware vSphere Distributed Switch (VDS) provides a centralized interface from which you can configure, monitor and administer virtual machine access switching for the entire data center. The VDS provides: Simplified virtual machine network configuration. Support for advanced VMware vSphere networking features.
What is standard switch in VMware?
A standard switch has the ability to move layer 2 traffic between virtual machines internally. This means that two virtual machines on the same subnet and on the same ESXi host can communicate directly; the traffic does not need to leave the ESXi host.
What is the function of a distributed switch?
A distributed switch functions as a single virtual switch accross all associated ESXi hosts and allows virtual machines to maintain consistent network configuration as they migrate across multiple hosts.
What are the differences between a standard switch and distributed switches?
A standard vSwitch works within one ESX/ESXi host only. Distributed vSwitches allow different hosts to use the switch as long as they exist within the same host cluster. A distributed vSwitch extends its ports and management across all the servers in a cluster, supporting up to 500 hosts per distributed switch.
What is required to create a vSphere distributed switch?
A minimum of two physical uplinks is required. vSphere Enterprise Plus licensing is required. The host is added to a vCenter Server. Login to the ESXi Host with the Root account.
How many ports does a standard switch have?
Switches can have anywhere from 5-port to 52-port configurations. When considering the number of ports you’ll need, you should think about the number of users your network supports. The larger your organization is, the more ports you’ll need.
Which features are only available to vSphere distributed switches?
These features are available only with a Distributed Switch:
- Can shape inbound (RX) traffic.
- Has a central unified management interface through vCenter Server.
- Supports Private VLANs (PVLANs)
- Provides potential customization of Data and Control Planes.
What are the benefits of a distributed switch over a standard switch?
Distributed switches allow different hosts to use the switch as they exist in same host. It Provides centralized management and monitoring of the network configuration of all the ESXi hosts that are associated with the dvswitch.
What are the three different types of switch installations?
Different Types of Electrical & Mechanical Switches
- SPST (Single Pole Single Through)
- SPDT (Single Pole Double Throw)
- DPST (Double Pole, Single Throw)
- DPDT (Double Pole Double Throw)
- 2P6T (Two Pole, Six Throw)
- Intermediate Switch.
What is standard and distributed switch?
What are the types of virtual switches?
A Virtual Switch created on Hyper-V can have unlimited Virtual Machines connected to it, and the virtual switch operates in one of two modes: Trunk Mode or Access Mode. There are three types of virtual switches that can be created in Hyper-V: External, Private and Internal Virtual Network Switch.
What is a virtual distributed switch?
A distributed virtual switch is an abstract representation of multiple hosts defining the same name, network policy and port group.
What is a standard switch?
Standard switch explained. A standard switch (sometimes called vSwitch ) is created by default when ESXi is installed. Like its physical Ethernet counterpart, a standard switch works at layer 2, forwards frames to other switch ports based on the MAC address, and supports features such as VLANs and port channels.
What is a virtual switch?
A virtual switch ( vSwitch ) is a software application that allows communication between virtual machines. A vSwitch does more than just forward data packets, it intelligently directs the communication on a network by checking data packets before moving them to a destination.
