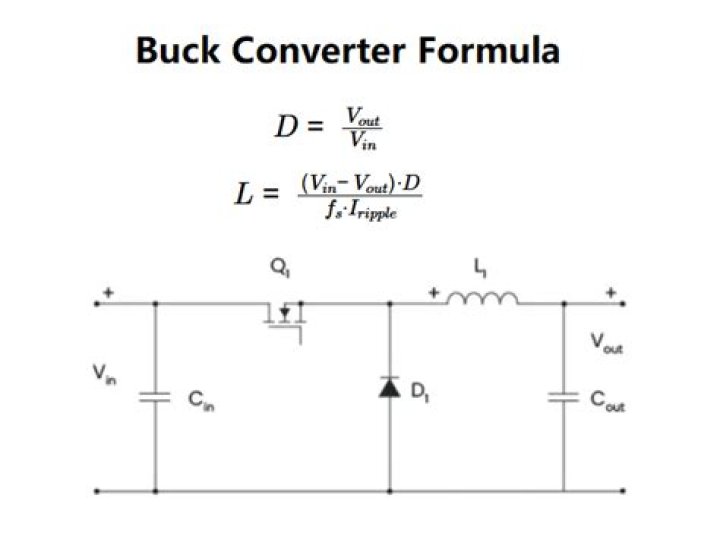

What is the formula for buck converter?

For the boost converter, V out ≈ 1 / 1 − D V g ; for the buck–boost, V out ≈ − D / 1 − D V g , i.e., the buck is a stepdown voltage circuit (as 0 < D < 1), the boost is a stepup, and the buck–boost, with an inverse output voltage, can either step up or step down the line.

How do you calculate duty cycle on a buck converter?

The duty cycle of a switching regulator depends on the respective switching regulator topology. A step-down (buck) converter, as shown in Figure 1, has a duty cycle D according to D = output voltage/input voltage. For a step-up (boost) converter, the duty cycle D = 1 – (input voltage/output voltage).

What is buck converter efficiency?

The efficiency of buck converters can be very high, often over 90%, making them useful for tasks such as converting a computer’s main supply voltage, which is usually 12 V, down to lower voltages needed by USB, DRAM and the CPU, which are usually 5, 3.3 or 1.8 V.

What is duty ratio of boost converter?

The duty ratio is defined as the on-time of the MOSFET divided by the total switching period. In all DC/DC converters the output voltage will be some function of this duty ratio. For the boost converter the approximate duty ratio (D) can be found with Equation 4.

How do you calculate the input power of a buck converter?

True but we generally use feedback to make a buck converter work in a predictable way. That feedback sets (fixes) the output voltage. The load on the output then determines the current. The feedback loop then controls the Duty Cycle such that the output voltage is correct for that current.

How do you calculate duty cycle from voltage?

Duty is literally the proportion of 1s to 0s output by the PWM command. To determine the proportional PWM output voltage, use this formula: (Duty ÷ 256) x 5 V. For example, if Duty is 100, (100 ÷ 256) x 5 V = 1.953 V; PWM outputs a train of pulses whose average voltage is 1.953 V.

How do you select the inductor of a buck converter?

When selecting an inductor for a buck converter the following parameters need to be defined:

  1. Maximum input voltage = Vin max.
  2. Minimum input voltage = Vin min.
  3. Maximum output current = Iout max.
  4. Operating frequency = f.
  5. Output voltage = Vout.
  6. Minimum output current = Iout min.

How is Buck converter efficiency calculated?

In a single-phase buck converter, estimate POUT by measuring the voltage across the output capacitor (or as close to the pin as possible), measuring the output current with an ammeter between the power output of the IC and the load, and multiplying the two.

How do you calculate Buck converter efficiency?

A power converter’s efficiency (AC-DC or DC-DC) is determined by comparing its input power to its output power. More precisely, the efficiency of the converter is calculated by dividing the output power (Pout) by its input power (Pin).

What is duty chopper cycle?

Answer: The total time period of one cycle of output waveform is constant. The average output voltage is directly proportional to the ON time of chopper. The ratio of ON time to total time is defined as duty cycle. It can be varied between 0 and 1 orbetween 0 and 100%.

What are the applications of buck converter?

Used in self-regulating power supplies.

  • Used as low-loss current sources to drive LED arrays (solid-state lighting applications).
  • Used as interface between battery and components in Notebooks.
  • Used as Point-of-load (POL) converters in servers
  • Buck converters are used in advanced telecom and datacom systems
  • Why is buck converter used?

    The Buck Converter. The Buck Converter is used in SMPS circuits where the DC output voltage needs to be lower than the DC input voltage.

  • AC or DC Input.
  • Buck Converter Operation.
  • Transistor Switch ‘on’ Period.
  • Transistor Switch ‘off’ Period.
  • How does buck converters work?

    How Buck Converters Work The Buck Converter. Typically you may find a buck converter being used in SMPS and MPPT circuits which specifically require the output voltage to be reduced significantly than the input Buck Converter Operation. Transistor Switch ‘on’ Period.
