5.1 Fabrication of Mold with SSCCC by Direct Metal Deposition (DMD)
| Material | Chemical composition (%) | Rockwell hardness (HRC) |
|---|---|---|
| H13 tool steel | C–Mn–Si–Cr–Mo–V–Fe (0.35–0.4–1–5–1.5–1–Balance) | 45–50 |
| Mild steel (AISI 1029) | C–Mn–P–S 0.3–0.6–0.04–0.05 | 80 |
What is H11 material?
H11 alloy is a 5% chromium hot-work tool steel characterized by its incredible impact toughness and good red-hardness. The alloy is a deep-hardening, air-hardening steel that exhibits minimal size change during heat treatment.
How do you harden H13?
H13 is a steel having very high hardenability and should be hardened by cooling in still air. The use of a salt bath or controlled atmosphere furnace is desirable to minimize decarburization, and if not available, pack hardening in spent pitch coke is suggested.
What is tool hardness?
CNC – Mohs scale of hardness and cutting tool materials The tool, which is the harder material, scratches the workpiece, which is the softer one. Scratch hardness is defined on the Mohs’ scale of hardness (developed by Frederich Mohs, a German geologist, in 1822), on which Talc is 1 and Diamond is 10.
What is the hardness of S7 tool steel?
between 48 – 58 HRC
S7 tool steel properties S7 is comparatively less resistant to wear but is very tough. It resists distortion during heat treatment well. It is the softest of the steel formulations compared in this article, achieving a typical working hardness range between 48 – 58 HRC.
What is H12 steel?
ASTM/AISI H12 Steel is a deep-hardening, air-hardening steel that exhibits minimal size change during heat treatmnet. H12 tool steel material has good resistance to thermal fatique cracking (heat cracking) and excellent resistnce to gross cracking and thermal shock when water cooled in service.

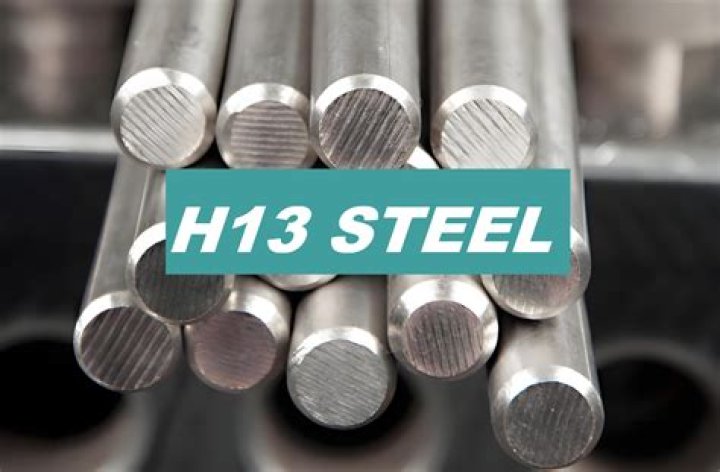

What kind of steel is H 13?
tool steel alloy
H-13 is a tool steel alloy that contains chromium, molybdenum, and vanadium. The molybdenum and vanadium provide the strength in this grade while the chromium aids in softening the material when it’s being used in high temperatures. H-13 is able to withstand rapid cooling and even premature heat checking.
What is the hardness of H13 tool steel?
H-13 Tool Steel. H-13 has a machinability rating of 60% to 70% of a 1% carbon tool steel. H-13 is sold in the annealed condition. Typical annealed hardness is BHN 192/235 Rc 11/21. H-13 maximum working hardness is BHN 525 Rc 53. H-13 is capable of meeting ASTM-A681.
Where can I get H13 die steel?
Virat Special Steels are largest stockiest and supplier of H13 tool steel in flat, square and round bar. We provide steel in all sizes as your requirements. H13 die steel is available in flat, square and round shape.
What is H13 used for in extrusion?
H-13 is widely used in the die cast and aluminum extrusion business as a material of choice, H-13 offers toughness, temper resistance operates in high temperatures, and also offers heat check resistance. H-13 has a machinability rating of 60% to 70% of a 1% carbon tool steel.
What is the difference between P-20 and H-13?
H-13 maximum working hardness is BHN 525 Rc 53. H-13 is capable of meeting ASTM-A681. P-20 is a general purpose mold steel designed for the plastic mold industry. With a combination of Chromium, Manganese, Molybdenum, and Carbon, unwell as being pre-hardened.
