The function of commutator ring in an electric motor is to reverse the direction of current flowing through the coil every time coil just passes the vertical position during a revolution. Hence as the direction of the current is reversed, the torque is changed in the direction.
What is motor commutation?
Put simply, commutation is the process of switching the current in the motor phases to generate motion. Brushed motors have physical brushes to achieve this process twice per rotation, while BLDC motors do not, hence the name. Due to the nature of their design, they can have any number of pole pairs for commutation.
What is used as the commutator in DC motor?
The function of a commutator in a dc generator is to collect the current generated in armature conductors. While in the case of a dc motor, the commutator helps in providing current to the armature conductors. A commutator consists of a set of copper segments which are insulated from each other.
What is the function of commutator in motor Class 10?
Answer: The function of commutator or slip ring is to change the direction of current through the coil after every half rotation.
What is the function of the commutator in a dc motor Brainly?
Recall that the function of the commutator is to reverse the direction of the current flowing through the armature in the rotor; this is precisely what happens.
What is the function of commutator in DC motor Mcq?
Commutator is used as mechanical rectifier in DC machines. It converts AC armature current in to DC current. Commutator is used to convert AC current into DC current.
What is commutator key?
The Plug Key Commutator is a key device used in physics and it has a brass block mounted on a thick plate of Bakelite. The plugs and lugs of the Plug Key Commutator are properly interloped and the locking is faultless.
What is AC commutator motor?
In electric motor: Alternating-current commutator motors. A specially designed series-commutator motor may be operated from a single-phase alternating voltage supply. When the supply current reverses, both the magnetic field and the armature current are reversed. Thus, the torque remains in the same direction.
What is the function of the commutator in this diagram?
Function of commutator: To keep the torque on a DC motor from reversing every time the coil moves through the plane perpendicular to the magnetic field, a split-ring device called a commutator is used to reverse the current at that point.
What is the function of a commutator of an electric current?
The function of commutator rings is to reverse the direction of current flowing through the coil every time the coil just passes the vertical position during a revolution.

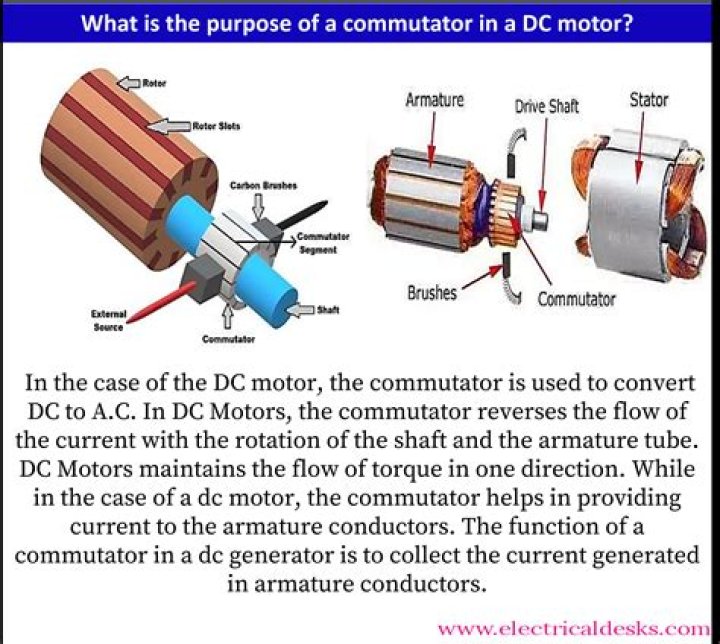

What is the purpose of a commutator in motor?
The commutator of a DC motor is a cylindrical structure that is made of copper segments stacked together but insulated from each other using mica. The primary function of a commutator is to supply electrical current to the armature winding. The brushes of a DC motor are made with graphite and carbon structure.
What is the function of the commutator in a motor?
the function of commutator is to lead current from external stationary leads to the rotating coils of the armature winding in case of motor and to draw current from armature winding to external circuit in case of generator. basically it act as a rectifier as it converts sinusodial(a.c.) signal into d.c signal.
What is the use of commutator in universal motor?
Commutators are used in DC machines (DC motors and DC generators) universal motors. In a motor, a commutator applies an electric current to the windings. A steady rotating torque is produced by reversing the current direction in the rotating windings each half turn.
What type of motor uses a brush commutator to operate?
DC motors can use either mechanical or electronic commutation. Brushed DC motors rely on the mechanical method, with brushes and a commutator, while brushless DC motors use electronic methods to achieve commutation.
