What does this mean? For electronic equipment racks (e.g., 19 or 23 inches wide), the term 1U is used to define one rack unit of height. To be precise, 1U equals 1.75-inches (44.45mm) of rack height. Therefore, a 2U rack mount height would be 2 x 1.75”, which equals 3.5-inches high.

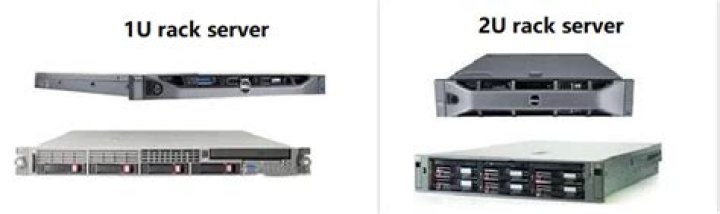

What is 1U and 2U server?
What is the difference?” The ‘U’ in any server description is short for “RU” which stands for Rack Unit — this is the standardized designation for the form factor of the server: 1U = 1.75″ in height or thickness. 2U is 1.75″ x2 = 3.5 inches. All rackmount servers are 19″ in width.
What does the U mean in server racks?
server rack unit
A server rack unit, or U, is a unit of measurement used to describe the amount of equipment space a server rack has. A U is 1.75 inches or 44.45mm high. An 8u rack has 8 units of vertical server rack space. Note: Equipment can be more than 1U in size.
What do rack servers do?
Like all servers, rack servers provide data and specific services to clients. They’re commonly found in data centers full of dozens, or even hundreds, of server racks and server rack cabinets. Rugged rack servers are often found in the field supporting military and industrial applications.
What is a 1U power supply?
1U equals 1.75-inches (44.45mm) of rack height. Photo #1: This 19″ rack-mountable power system can hold up to 3 plug-in, hot-swap and redundant power supplies. The enclosure with mounting ears is 1.72″ high (= 1.75″ minus 0.03″) and is therefore considered 1U high.
What are the dimensions of a 1U server?
One U is 1.75 inches (44.45mm); the standard rack, at 19 inches, is 42U. Rack servers and other hardware designed to be rack-mounted are manufactured in multiples of 1.75 inches and specified in multiples of rack units, usually 1U, 2U, 3U or 4U. Racks are designed to hold equipment of those sizes.
What does 2U mean?
2U means “To You.” The abbreviation 2U is a cyber term used in text-based conversations to mean “To You.” For example: Happy birthday 2U! All the best 2U.
What is U in 42U rack?
What is a “U” or “Rack Unit”? A rack unit (abbreviated as U, less commonly seen as RU) is a unit of measurement applied to equipment racks and the servers, disk drives and other devices that they contain. One U is 1.75 inches (44.45mm); the standard rack, at 19 inches, is 42U.
How many U are in a 7ft rack?
the “U” in “42U” is stands for “rack units,” or “U-spaces,” which equal 1.75 inches. If you are investing in data center racks, the standard height is 48U (“7-foot rack”) or, on some occasions, 42U.
How many 1U servers will fit in a rack?
A standard rack is 42U of space. You can technically fit 42x 1U servers in a rack, but, you need to consider other equipment (routers, switches, cable management, etc) which will all take up space. Power consumption is probably a more likely a limiting factor then space as 42 servers is going to take a LOT of power.
How much is 1U rack space?
This three hole group is defined as a Rack Unit (RU) or sometimes just call a “U”. 1U occupies 1.75″ (44.45 mm) of vertical space. Manufacturers of rackmount equipment make their product lines based upon how many RUs that the equipment occupies in the server rack.
What is 1U or 2U on rackmount?
The 1U, 2U, 3U, 4U, 5U, 6U and 7U are rackmount servers of different sizes , and the U following the number is the abbreviation for the unit.The number indicates the size of the rackmount, with 1U being the smallest and 7U being the largest.The image, courtesy of Dell Inc., shows some of the Dell PowerEdge servers and examples of different rack-mount units.
