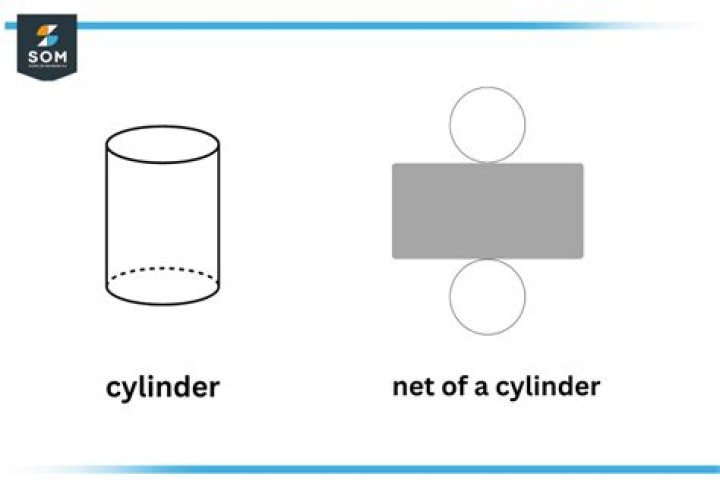

The net of a cylinder looks like a rectangle with two circles attached at opposite ends. We also define a base radius for the cylinder as the radius of the base, and the height of the cylinder as the distance between the bases.
How do you find the volume of a net?
Units of Measure
- Volume = length x width x height.
- You only need to know one side to figure out the volume of a cube.
- The units of measure for volume are cubic units.
- Volume is in three-dimensions.
- You can multiply the sides in any order.
- Which side you call length, width, or height doesn’t matter.
What is the net of a circle?
A net of circles is a two-parameter family of circles that depends linearly on the parameters. A non-degenerate net of circles is the set of all circles relative to which a given point (the centre of the net) has a given power.
What is the net of a solid?
A net is a two-dimensional shape that can be folded to make a three-dimensional shape. The net of a solid is a diagram drawn on a paper which when cut and folded along the lines can be used to construct a solid shape.
How do you measure a cylinder?
To calculate the volume of a cylinder, you need the radius or diameter of the circular base or top and a cylinder’s height. The volume of a cylinder is equal to the product of the area of the circular base and the height of the cylinder. The volume of a cylinder is measured in cubic units.
How do you find the missing dimension of a cylinder?
Since the volume of a cylinder formula involves the radius, you can solve for the radius and double it to find the diameter.
- Write the formula. Volume=π⋅radius2⋅height.
- Substitute the dimensions of the shape into the formula. Use 3.14 as the value for π. 791.28=3.14⋅r2⋅28.
- Solve the equation for the missing variable.
How do you measure the volume of a cylinder?
Volume of a cylinder
- V = A h.
- Since the area of a circle = π r 2 , then the formula for the volume of a cylinder is:
- V = π r 2 h.
What is a net of a prism?
The net of a solid figure is formed when a solid figure is unfolded along its edges and its faces are laid out in a pattern in two dimensions. Nets of rectangular prisms are made up of rectangles and squares. Using a net to find the surface area of a rectangular prism.
How many nets are there for a cylinder?
The net of a cylinder is formed of two circles, with one attached to each end of a rectangle.
Which of the following nets is a net of a cylinder?
Answer : A net is 2-D figure which when folded in a particular axis gives a 3-D figure. So for the net to form a cylinder, the shape of the interlinking blocks of nets should contain a rectangle which is present only in option C. So the correct answer is C.
How do you find the volume of a closed cylinder?
Calculate volume of a cylinder: V = πr 2h. Calculate the lateral surface area of a cylinder (just the curved outside)**: L = 2πrh. Calculate the top and bottom surface area of a cylinder (2 circles): T = B = πr 2. Total surface area of a closed cylinder is: A = L + T + B = 2πrh + 2(πr 2) = 2πr(h+r)
How do you find the base surface area of a cylinder?
To calculate the base surface area, you need to compute the area of a circle with the radius r. But remember that every cylinder has two bases! Thus, you need to multiply it by two: base_area = 2 * π * r². Estimation of the lateral surface area is even easier.
How do you know if a cylinder is right?
Cylinder is right when one of its bases lies exactly above the other base and oblique if it doesn’t. It is worth mentioning that the base of a cylinder can be any plain, closed surface, e.g., a circular cylinder has a circular base, and a rectangular cylinder has a rectangular base.
How do you make a net out of a solid?
Make sure that the solid and the net have the same number of faces and that the shapes of the faces of the solid match the shapes of the corresponding faces in the net. Visualize how the net is to be folded to form the solid and make sure that all the sides fit together properly.
