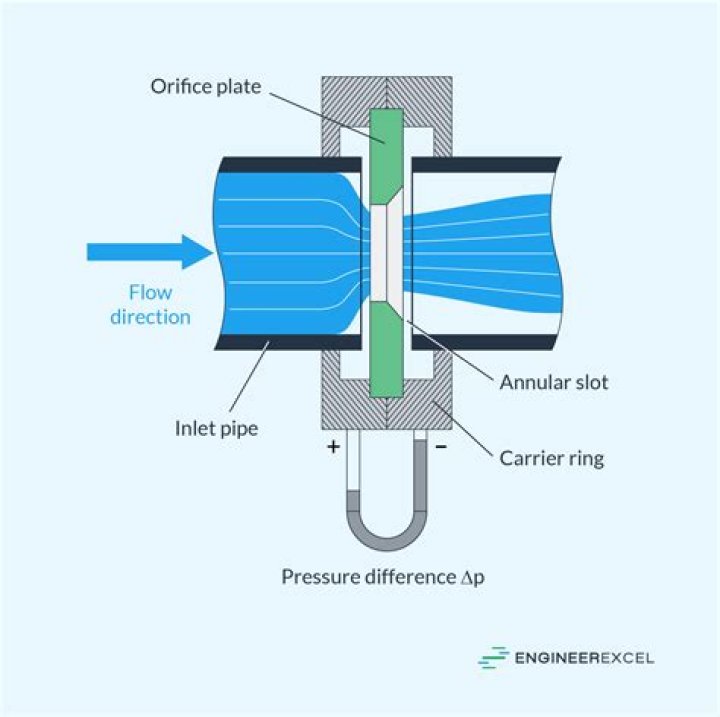

Basic Working Principle of an Orifice Meter The liquid or gas whose flow rate is to be determined is passed through the orifice plate. This creates a pressure drop across the orifice plate which varies with the flow rate, resulting in a differential pressure between the outlet and inlet segments.
How does a flow orifice work?
Orifice plates are a primary flow element, detecting the flow of a fluid passing through the plate by sensing the pressure drop across the plate. When a fluid flows through a restriction in a pipe, it creates a pressure difference between upstream and downstream of the restriction.
What is an orifice What is the purpose of orifice?
An orifice plate is a device used for measuring flow rate, for reducing pressure or for restricting flow (in the latter two cases it is often called a restriction plate ).
What are the types of orifice?
Eccentric bore orifice plates are more uncertain as compared to the concentric orifice. Segmental Bore – The segmentally bored orifice plates contain a hole that is a segment of a concentric circle. Like the eccentric orifice plate design, the segmental hole should be offset downward in gas flow applications.
Does an orifice reduce flow?
A reduction in orifice size results in decreased flow as only so much liquid can pass through the orifice. Since the flow of liquid is limited by the orifice, it follows that the pressure on the exit side of the orifice is less than that on the inlet side.
What is orifice meter explain in brief?
An orifice meter is a device with a hole in it, which measures how fast a fluid is flowing, by recording the pressure decrease across the hole. The simplest and most common device for measuring flow rate in a pipe is an orifice meter.
How does orifice affect flow rate?
The arrangement of the slots along the entire cross-section of the pipe leads to the liquid drop entrainment by the gas flow. In the case of a standard orifice, a large part of the liquid is held up downstream of the orifice, the flowing liquid accumulation that leads to additional, unfavorable flow disturbances.
Where is orifice plate used?
Orifice plates are most commonly used to measure flow rates in pipes, when the fluid is single-phase (rather than being a mixture of gases and liquids, or of liquids and solids) and well-mixed, the flow is continuous rather than pulsating, the fluid occupies the entire pipe (precluding silt or trapped gas), the flow …
Does orifice affect flow rate?
Since the flow of liquid is limited by the orifice, it follows that the pressure on the exit side of the orifice is less than that on the inlet side. BUT, this is dependent on and ONLY true if there is liquid flow. A smaller upstream orifice prevents sufficient liquid flow to achieve higher pressure.
What is true orifice flow?
True orifice flow occurs only when the upstream water level is well above the orifice to reduce vortex flow through air entrainment. If this level drops below the top of the opening, the discharge has to be considered as being through a weir (n.d.).
What is an orifice in a gas tank?
An orifice is basically a small opening of any cross-section such as triangular, square or rectangular on the side or at the bottom of tank, through which a fluid is flowing. Orifice is basically used in order to determine the rate of flow of fluid.
What is a small orifice?
A small orifice is one which has a diameter or vertical dimension much smaller than the head causing the flow so as there is negligible head between point to point along the orifice (Douglas et al). The figure below shows the orifice characteristics and true orifice flow.
What is ororifice and how does it work?
Orifice is basically used in order to determine the rate of flow of fluid. As we have discussed above that orifice will be a small opening of any cross-section, hence flow through the orifice will be very small. Let us consider one tank with a circular orifice fitted at one side of the tank as displayed here in following figure.
