The pulse width of the output rectangular pulse is W = 1.1 RC. The waveforms of the monostable operation are shown below.
How do you calculate a 555 timer?
In this 555 timer Astable calculator, enter the values of timing capacitor C and timing resistors R1 & R2 to calculate the frequency, period and duty cycle….555 Timer Astable Calculator Description.
| Parameter | Formulae | Unit |
|---|---|---|
| Time Low (T2) | 0.693 × R2 × C1 | Seconds |
| Time Period (T) | 0.693 × (R1+2×R2) × C1 | Seconds |
How do you calculate time delay on a 555 timer?
This duration of quasi stable state can be calculated using this 555 Monostable Calculator or can be calculated with the formulae given below: T= 1.1*R1*C1 Seconds where R1 is in OHM and C1 is in Farads.
What is the equation for pulse width of a monostable multivibrator?
If w, is the input pulse width in seconds, then the corresponding output pulse width in seconds will be, W0 = mW;, where m is the multiplication factor. A PWM can be designed to have a multiplication factor either greater or less than unity. A modified monostable circuit that acts as a PWM is shown in Fig. 1.
What is a 555 timer circuit?
The circuit is an astable multivibrator with a 50% pulse duty cycle. The difference from the standard design of a 555 timer is the resistance between pins 6 and 7 of the IC composed of P1, P2, R2, D1 and D2.

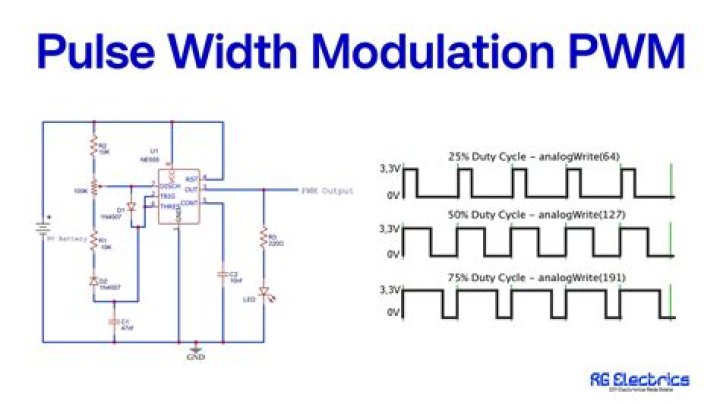

How to generate PWM signal from a 555 timer?
We have used a variable resistor in place of fixed resistor for changing duty cycle of the output signal. Capacitor Charging through D1 diode and Discharge through D2 diode will generates PWM signal at 555 timer’s output pin. Below formula is used for deriving the frequency of the PWM signal:
How long can a 555 monostable circuit generate a pulse?
This 555 monostable circuit can generate pulses from a few microseconds to several hours depending on the values of resistor R and capacitor C. Note, however, that the use of very large capacitor (usually electrolytic-type) values are discouraged.
How to make the 555 timer IC work in Mont stable mode?
This pre-defined time can be set by selecting the correct values of Resistor (R1) and Capacitor (C1) shown in the below circuit. This is a simple circuit to make the 555 timer IC to work in Mont stable mode.
