BNC connectors are used with miniature-to-subminiature coaxial cable in radio, television, and other radio-frequency electronic equipment, test instruments, and video signals. The BNC was commonly used for early computer networks, including ARCnet, the IBM PC Network, and the 10BASE2 variant of Ethernet.
Are BNC connectors still used?
You might remember the BNC connector that was used for component connections in the 2000s and before. It has been used for SD video and HD video, but it’s rarely seen in consumer electronics today. While N-connectors are still around, the C connector is no longer used.
Is BNC analog or digital?
Generally, the 50-ohm BNC connector can be used at frequencies up to 4GHz. And it rarely has transmission error when connecting with cables, so it is the most widely-used one. However, 50-ohm BNC connectors are usually used for the old analog video signal, and won’t bring you good-quality signal transmission.
What is a BNC connector used for?
The BNC connector is used for composite video on commercial video devices. Consumer electronics devices with RCA connector jacks can be used with BNC-only commercial video equipment by inserting an adapter. BNC connectors were commonly used on 10base2 thin Ethernet network cables and network cards.
How do BNC connectors work?
BNC connectors are attached to the ends of coaxial cables and can be used for connecting signals such as RF signals and video signals on consumer electronics.
What does BNC connector mean?
BNC connector. The BNC (Bayonet Neill–Concelman) connector is a miniature quick connect/disconnect radio frequency connector used for coaxial cable.

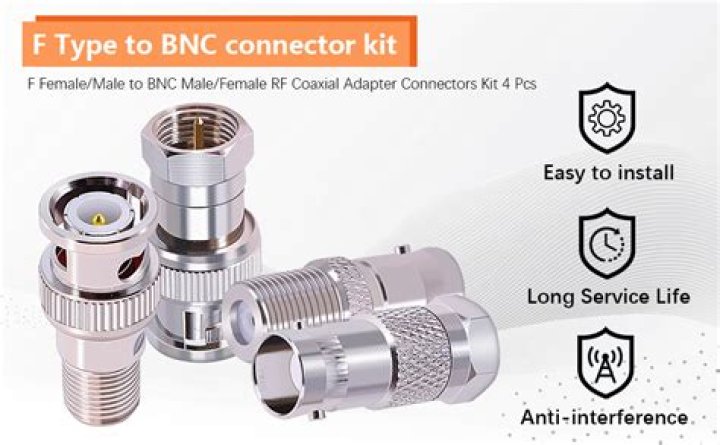

What is a BNC to coaxial adapter?
The BNC connector (initialism of “Bayonet Neill-Concelman”) is a miniature quick connect/disconnect radio frequency connector used for coaxial cable . The interface specifications for the BNC and many other connectors are referenced in MIL-STD-348.
