4,900 newtons per meter
The springs used in the shock absorbers must have spring constants of at least 4,900 newtons per meter. The car designers rush out, ecstatic, but you call after them, “Don’t forget, you need to at least double that if you actually want your car to be able to handle potholes.”
What is meant by spring constant?

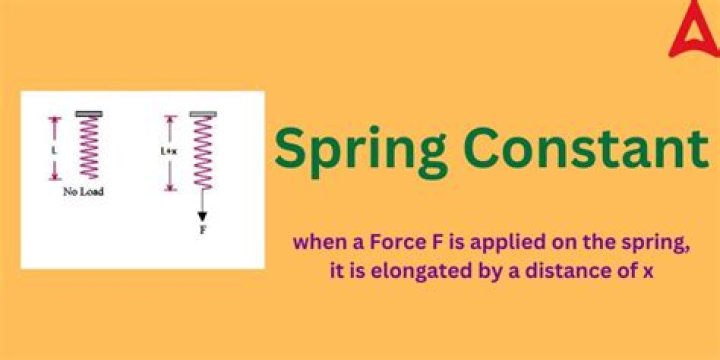

The spring constant, k, is a measure of the stiffness of the spring. It is different for different springs and materials. The larger the spring constant, the stiffer the spring and the more difficult it is to stretch.
Is spring constant linear?
Springs that follow Hooke’s Law are often referred to as “linear springs” because they have a linear relationship between load and deflection. A linear spring has the same diameter along its entire length, and this uniform diameter gives it a constant spring rate.
How can the spring constant of a spring be determined from a graph of force versus displacement?
Spring constant of the spring is the slope on the force versus displacement graph.
What is the spring constant of a spring that needs a force of 3 N to be compressed from 40 cm to 35 cm?
F = k Δx = 100 N / m × 0.01 m = 1 N Page 9 Practice Problem #2 What is the spring constant of a spring that needs a force of 3 N to be compressed from 40 cm to 35 cm? The spring changes from a length of 40 cm to 35 cm, hence it compresses 40 cm – 35 cm = 5 cm Δx = 5 cm = 0.05 m.
What are the different types of shock absorbers?
Existing shock absorbers can be divided into two classes based on the type of the spring being used: those using a solid spring made of steel or rubber and those using a fluid spring with gas or oil, or a mixture of the two that is generally referred to as oleo-pneumatic.
What are the springspring rate calculations for solid axle suspension?
Spring rate calculations for solid axle suspension are the same as above except the Force Ratio (Fr) = 1.
What is springspring rate?
Spring rate refers to the amount of weight that is needed to compress a spring one inch. If the rate of the spring is linear, its rate is not affected by the load that is put on the spring.
What is adjusted spring force (ASF)?
The required Adjusted Spring Force (ASf) can now be used to select the proper spring rate for your application. The required spring force can be obtained several different ways. A lighter rate spring with more preload or a stiffer rate spring with less preload will generate the same spring force.
