The TL071 is a high-speed JFET input single operational amplifier. This JFET input operational amplifier incorporates well matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit.
What is the difference between TL071 and TL081?
TL071 and TL081 have same supply current. TL061 is the low current version. Which follows not as good data. Slower and higher noise.
What is non inverting op-amp?
A non-inverting op amp is an operational amplifier circuit with an output voltage that is in phase with the input voltage. Its complement is the inverting op amp, which produces an output signal that is 180o out of phase.
What is buffer op-amp?
An op-amp voltage buffer mirrors a voltage from a high-impedance input to a low-impedance output. 8 min read. A voltage buffer, also known as a voltage follower, or a unity gain amplifier, is an amplifier with a gain of 1. It’s one of the simplest possible op-amp circuits with closed-loop feedback.
Is TL074 rail to rail?
Output: The TL074 is not a rail to rail Op-Amp hence the output voltage will not reach the maximum positive or maximum negative voltage when saturated.
How is offset null used in op amp?
For circuits where it is necessary to remove or null the offset, many op-amp chips provide two pins that enable this to be done. Using the offset null adjustment requires a potentiometer with its wiper connected to the negative supply with some op amps or to 0 V with others so it is necessary to check the data sheet.
Why do we need buffer amplifier?
A buffer amplifier (sometimes simply called a buffer) is one that provides electrical impedance transformation from one circuit to another, with the aim of preventing the signal source from being affected by whatever currents (or voltages, for a current buffer) that the load may be produced with.
Why do transmitters use a buffer amplifier?
A buffer amplifier provides electrical impedance transformation from one circuit to the other circuit, to prevent the signal source from being affected by whatever currents that the load may be produced with. A master oscillator in the AM transmitter generates a stable sub harmonic carrier frequency.
What is an inverting amplifier?
An inverting amplifier takes an input signal and turns it upside down at the op amp output. When the value of the input signal is positive, the output of the inverting amplifier is negative, and vice versa. The amount of amplification depends on the ratio between the feedback and input resistor values.
What is IC TL084?
TL084 is a high-speed operational amplifier integrated circuit that is made up of a high voltage JFET and a bipolar transistor. It features low input bias currents, trimmed input offset voltage, and high slew rates.
What are the key features of tltl071?

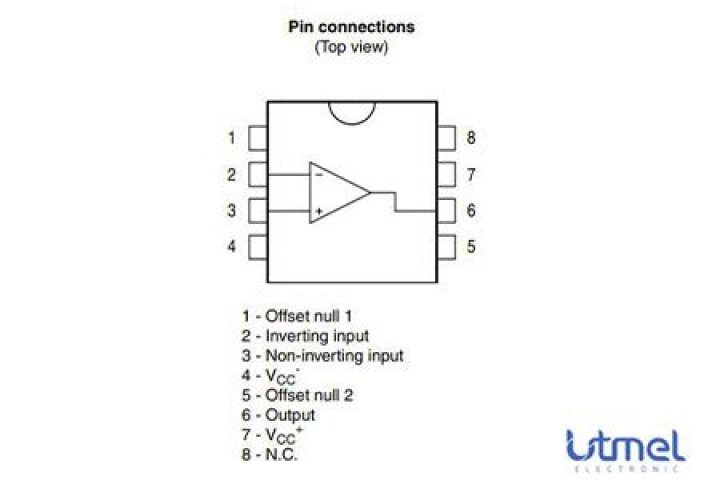

TL071 Pinout 1 Low Power Consumption 2 Wide Common-Mode and Differential Voltage Ranges 3 Low Input Bias and Offset Currents 4 Output Short-Circuit Protection 5 Low Total Harmonic Distortion: 0.003% Typical
What is a TL071 pinout JFET?
TL071 Pinout – JFET-Input Operational Amplifier – TI. The TL07xx, TL071 JFET-input operational amplifier family is designed to offer a wider previously developed operational amplifier. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit.
What makes the tl07x series unique?
The low harmonic distortion and low noise make the TL07x series ideally suited for high-fidelity and audio preamplifier applications. Each amplifier features JFET inputs (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip.
What is the difference between the JFET tl07x and tl08x series?
The JFET-input operational amplifiers in the TL07x series are similar to the TL08x series, with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL07x series ideally suited for high-fidelity and audio preamplifier applications.
