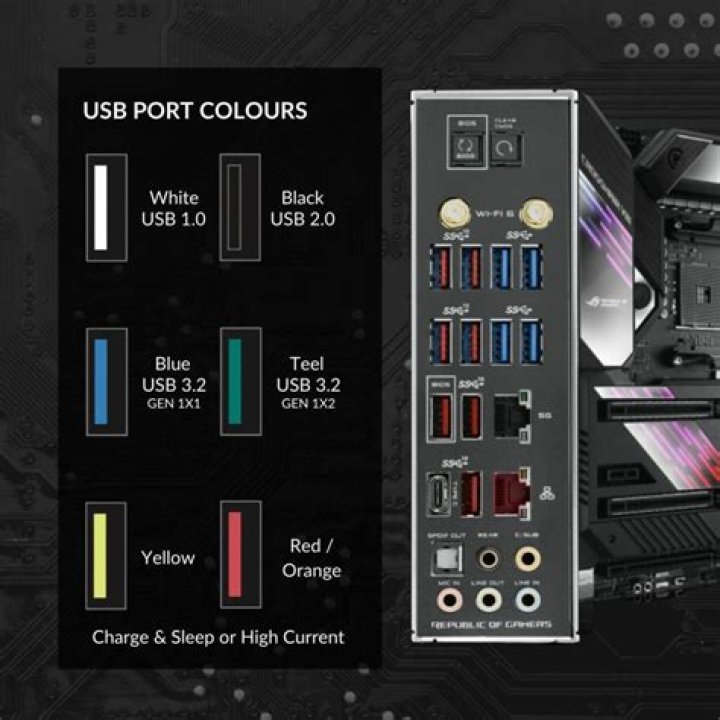

USB (Universal Serial Bus) 2.0 Ports: There are usually a couple of these ports located on each motherboard used for connecting pen drives and external hard drives, like Ipods or Mp3 players.
What are the USB pinouts?
USB Connector Pinouts
| Pin | Name | Cable color |
|---|---|---|
| 1 | VCC | Red |
| 2 | D- | White |
| 3 | D+ | Green |
| 4 | GND | Black |
Where are USB headers on motherboard?
Many modern-day motherboards provide a number of USB pin headers that allow connection to USB ports mounted on the front of the system case. A header will generally contain 10 pins arranged in two rows of five. On some motherboards one or two pins may be marked as NC, for no contact.
Does it matter which USB port you use on motherboard?
As for the rest, it doesn’t matter. If you were to get a motherboard with 4 ports, the above should have their own ports. As for the rest, they will be fine in a port.
How many USB ports do I need on my motherboard?
Almost all motherboards these days have a USB header. Due to size and cost restraints many motherboards only have 2 USB ports on their back panel, but often they can actually support more then 2 USB ports. They will typically support additional ports via the use of a USB header.
What is VCC in USB connector?
Vcc Pin. One of the four key connectors on a USB header is the Vcc pin. Also referred to as Vbus or V+, the pin carries a 5-volt signal that provides up to 500 milliamps of power for connected USB devices. While the “V” in Vcc refers to the voltage that it provides, the “cc” is not short for anything.
Why do some USB ports work better than others?
What makes them different is the hub they are connected to and, more importantly, the USB controller chipset they are connected to. The controller and hub are what determines their speed, bandwidth, etc.
Can I plug USB into COM on motherboard?
It is quite possible to plug a USB dongle or flash drive directly into a motherboard. That port works just like the ports on the back on motherboard, accessible from the back of the computer case: just plug in any USB device and it’s like you’ve plugged it into a traditional case port.
What is an USB header on a motherboard?
USB headers are groups of pins on a motherboard, into which one can plug a special cable to provide USB ports on a computer chassis. In the case of USB 2, such headers will usually appear in a 2×5 grid with one corner pin missing (9 total pins). USB 3 headers are larger.
What is a 4 pin motherboard connector?
The ATX 4 pin power supply connector is a standard motherboard power connector used to provide +12 VDC to the processor voltage regulator.
What is a motherboard port?
Ports are slots on the motherboard into which a cable of external device is plugged in. Examples of external devices attached via ports are the mouse, keyboard, monitor, microphone, speakers, etc.
