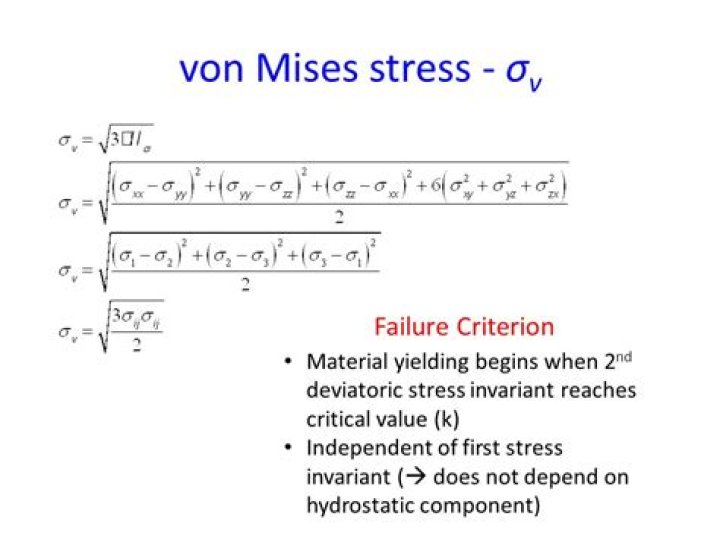

The Von Mises failure theory indicates that A material will fail if the Von Mises stress or effective stress of that material under load is equal or greater than the yield limit of the same material under a simple uniaxial tension test.
What is von Mises stress theory?
Von Mises stress is a value used to determine if a given material will yield or fracture. The von Mises yield criterion states that if the von Mises stress of a material under load is equal or greater than the yield limit of the same material under simple tension then the material will yield.
What does high von Mises stress represent?
Von Mises stress represents the amount of distortion energy. Continuing on, the system can be written with the distortion energy in terms of the von Mises stress (σVM) [3]: The von Mises’ theory states that a ductile solid will yield when the distortion energy density reaches a critical value for that material.
What is von Mises stress in Solidworks?
The von Mises equation dictates that the square of the difference between a positive and a negative stress component may be greater when compared to the difference between positive stress component values. …
What is the von Mises stress output and why is it useful for static Analyses?
The von Mises stress is used to predict yielding of materials under complex loading from the results of uniaxial tensile tests. The von Mises stress satisfies the property where two stress states with equal distortion energy have an equal von Mises stress.
What is signed von Mises stress and absolute principal stress?
The Signed von Mises stress gives results lies between the absolute maximum principal and signed Tresca. Proportional loading means that no longer have a uniaxial stress state but the relative magnitude of σ2 to σ1 is not changing with time, i.e., remain proportional to each other.
How do you interpret von Mises stress?
The von Mises yield criterion states that if the von Mises stress of a material under load is equal or greater than the yield limit of the same material under simple tension then the material will yield.
What is maximum von Mises stress?
The theory states that a ductile material starts to yield at a location when the von Mises stress becomes equal to the stress limit. In most cases, the yield strength is used as the stress limit.
What is the von Mises yield criterion for pure shear stress?
The von Mises yield criterion for pure shear stress, expressed in principal stresses, is In the case of principal plane stress, and , the von Mises criterion becomes: This equation represents an ellipse in the plane .
What is von Mises stress and how does it work?
The von Mises stress satisfies the property where two stress states with equal distortion energy have an equal von Mises stress. , it is applicable for the analysis of plastic deformation for ductile materials such as metals, as onset of yield for these materials does not depend on the hydrostatic component of the stress tensor .
Is there a chapter for stress tensors and failure envelopes?
I have been working on the new sections for our free engineering textbook and over the weekend I began writing the chapter for stress tensors (principal stresses, Von-Mises) and failure envelopes (Maximum principal Stress, Von Mises, Tresca).
What is the von Mises yield criterion for plastic deformation?
Because the von Mises yield criterion is independent of the first stress invariant, I 1 {\\displaystyle I_{1}} , it is applicable for the analysis of plastic deformation for ductile materials such as metals, as onset of yield for these materials does not depend on the hydrostatic component of the stress tensor.
