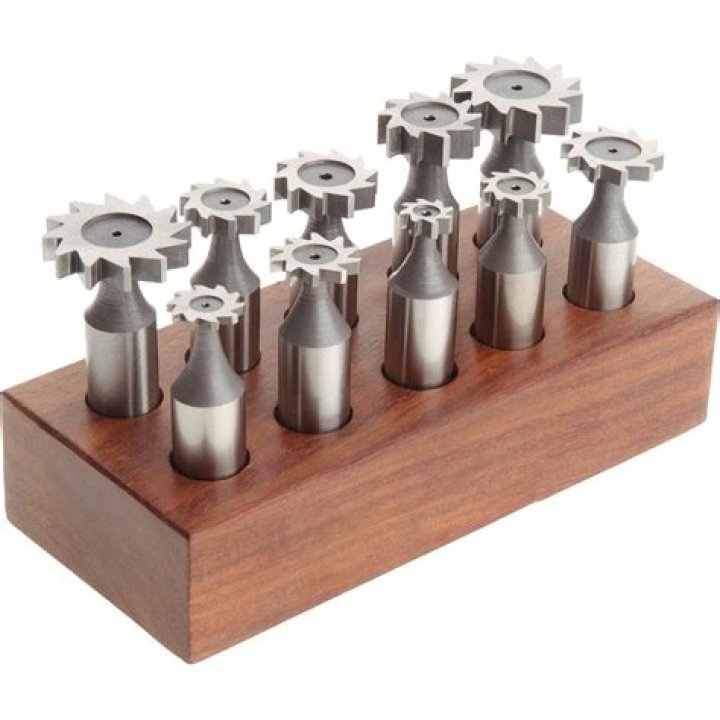

We are Manufacturer and Exporter of Woodruff Key Slot Milling Cutter used to cut the keyway for a woodruff key. These cutters are slightly hollow-ground on the sides for relief and the teeth are not side cutting. …
How does the T slot milling cutter differ from the Woodruff key slot milling cutter?
Re: Cutting “T” slots with a Woodruff cutter If you can justify it, a T-slot cutter will work lots better. It has staggered teeth and also cuts on the sides. A woodruff cutter is made for doing woodruff keys and has NO side cutting, so it might want to get real tight when milling a T-slot.
Which cutter is suitable for making such keyway?
If you need to mate a part on a shaft, you need a key cutter. A key cutter, also known as a keyseat cutter, keyway cutter, or woodruff cutter, is a versatile tool that can be used to cut several different types of keyways….Key Cutter Speeds and Feeds.
| Material | Grades | SFM |
|---|---|---|
| Martensitic | 403, 410,416, 420, 430, 431, 440 | 110 |
What is a woodruff key cutter used for?
Woodruff cutters are used to cut the keyway for a woodruff key. Woodruff cutters are slightly hollow ground on the sides for relief and the teeth are not side cutting. The teeth come in both straight and staggered varieties.
What is woodruff key used for?
A woodruff key is a half‑moon shaped machine key that prevents gears, hubs, or other components from moving independently of a rotating shaft or spindle. They also act as a fail‑safe that protects expensive parts by shearing under excessive loads.
What is a Woodruff key cutter used for?
What does a Woodruff cutter do?
Which cutters are used for deep slots and heavy duty milling?
Slitting Saw Cutter Slitting saw cutter is extremely thin cutters, unstable in thickness as of 0.5 to 5 mm. They are use for cutting deep slots with parting off materials into part.
What is Woodruff keyway?
Woodruff keys are semicircular shaped, such that, when installed, leave a protruding tab. The keyway in the shaft is a semi-circular pocket, the mating part, a longitudinal slot. They are used to improve the concentricity of the shaft and the mating part, which is critical for high speed operation.
What is the advantage of a woodruff key?
The main advantage of Woodruff keys is the elimination of milling near the shaft shoulders, where stress concentrations and concentrations would be affected. A more precise fit of the key and keyway also reduces play and stress concentrations and improves the reliability of the key.
What are Woodruff cutters made of?
Designed for cutting keyways and keyseats, these woodruff-style cutters are designed with dished sides for clearance. Square profile Keyseat Cutters, or “Woodruff Cutters,” feature solid carbide construction for strength and an AlTiN Coated option for added lubricity and heat resistance.
Why choose Harvey tool’s miniature Keyseat cutters?
Harvey Tool’s Miniature Keyseat Cutters offering is unmatched in the industry, featuring hundreds of specialty sizes and styles. Designed for cutting keyways and keyseats, these woodruff-style cutters are designed with dished sides for clearance.
What are Keyseat cutters made of?
Square profile Keyseat Cutters, or “Woodruff Cutters,” feature solid carbide construction for strength and an AlTiN Coated option for added lubricity and heat resistance. Harvey Tool’s selection of fully stocked, corner radius Keyseat Cutters includes standard, reduced shank, and staggered tooth designs.
What is a keyseat mill used for?
Use these end mills for general purpose keyseat cutting in a wide range of material, including aluminum, iron, and steel. They mill precise notches in rotary shafts to fit machine keys and can also be used for slot milling.
