The diameters listed in the chart below are in fractions of an inch, so the #12 is just shy of 1/4 inch. A more detailed table with thread count can be found below, along with tap drill sizes. Detailed screw sizes charts.
What size is M12 bolt in inches?
Table 3.
| Metric | Closest Inch |
|---|---|
| M10-1.5 | 3/8-16 (Smaller) |
| M12-1.75 | 1/2-13 (Larger) |
| M14-2.0 | 9/16-12 (Larger) |
| M16-2.0 | 5/8-11 (Smaller) |
What size is a 10 12 screw?
Common threads per inch sizes are: 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 20, 24, 28, 32, 36, 40, 48, 56, 72, 80….Table 1.
| Threads per Inch | Pitch (inches) | Pitch (mm) |
|---|---|---|
| 12 | 0.0833 | 2.117 |
| 11 | 0.0909 | 2.309 |
| 10 | 0.1000 | 2.540 |
| 9 | 0.1111 | 2.822 |
How do you measure the diameter of a screw?
To measure the diameter of screws and bolts, you measure the distance from the outer thread on one side to the outer thread on the other side. This is called the major diameter and will usually be the proper size of the bolt.
What diameter is #8 screw?
0.17″
The #8 gauge screw has a major diameter of 0.17″ and 8 TPI. The screw is 1-1/4″ long, a measurement taken from the bottom of the head to the point.
Is an M12 bolt 12mm?
M12 is a 12mm diameter thread. You have to be sure the thread pitch measured in threads per millimeter (1.5 here) is the same as what u need.
What is the diameter of a screw?
What diameter is a number 10 screw?
3/16″
US Machine Screw Diameters
| Size | Nominal Thread Diameter | |
|---|---|---|
| Decimal | Nearest Fractional | |
| #6 | 0.138″ | 9/64″ |
| #8 | 0.164″ | 5/32″ |
| #10 | 0.190″ | 3/16″ |
What diameter is No 8 screw?
American Screw Sizes
| THREAD DIAMETER | ||
|---|---|---|
| Size | Nearest Fraction | Inch |
| #6 | 9/64 | 0.13 |
| #8 | 5/32 | 0.16 |
| #10 | 3/16 | 0.19 |
How big is a number 10 screw?
| Wood Screw Dimensions, Sizes, Head Diameters & Threads per Inch | ||
|---|---|---|
| Nominal Screw Size | Threads per Inch | Basic Diameter of Screw |
| 10 | 13 | 3/16 |
| 12 | 11 | 7/32 |
| 14 | 10 | 15/64 |
What is the diameter of a number 12 screw?

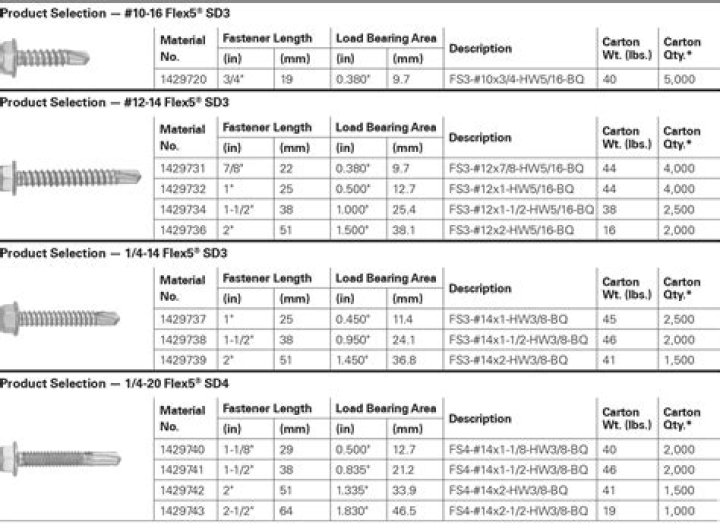

Design with tek screws. A #12 screw is a 0.216″ diameter and a #14 is a 0.242″ diameter. The second number (#12-24) refers to the threads per inch. For a #12 screw, the standard number of threads per inch for a coarse threaded screw would be 24. I assume a #12-12 would typically be used in wood or plastics due to the smaller number of threads.
What are the sizes of wood screws?
Wood screws are numbered from 0 to 20, indicating a diameter from about 1/16 in. to 5/16 in. The length of wood screws is measured in inches and fractions of inches and ranges from approximately 3/4 inches long to 4 inches. Drywall screws are available in sizes 6 to 10, with the size indicating threads/per inch.
What are the dimensions of a wood screw?
A typical lag screw can range in diameter from 1⁄4 in (6.35 mm) to 11⁄4 in (31.75 mm), and lengths from 1⁄4 to 6 in (6.35 to 152.40 mm) or longer, with the coarse threads of a wood-screw or sheet-metal-screw threadform (but larger).
What size are sheet metal screws?
Sheet metal screw size is commonly given using a series of three numbers, which represent the diameter, thread count and length of each screw. For example, a screw listed as 8-32 x 1″ has a diameter of size 8, contains 32 threads per inch, and is one inch (2.5 cm) long.
