Standard diameters ranging from 12” to 96” in lengths of 8′ up to 12′. Larger diameters available.
How much do concrete pipes cost?
Reinforced Concrete Pipe
| REINFORCED CONCRETE PIPE (CSA A257.2) | Price per Meter | |
|---|---|---|
| INSIDE DIAMETER | 50D | 100D |
| (mm) | (CLASS II) | (CLASS IV) |
| 525 | $137.00 | $160.00 |
| 600 | $184.30 | $212.10 |
What size do concrete culverts come in?
Precast Box Culverts are normally available in spans of 3 feet through 12 feet, with a variety of rises. Some markets produce spans to 20 feet.
How much does a 300mm concrete pipe weigh?
Specifications
| Diameter (d) | l (mm) | Weight (kg) |
|---|---|---|
| 300mm | 2.44m or 1.22m | 200 |
| 375mm | 2.44m or 1.22m | 310 |
| 450mm | 2.44m or 1.22m | 390 |
| 525mm | 2.44m or 1.22m | 470 |
What is the minimum cover for reinforced concrete pipe?
1 inch
The minimum concrete cover for reinforcement in precast concrete pipe shall be 1 inch in pipe having a wall thickness of 2 1/2 inches or greater and 3/4 inch in pipe having a wall thickness of less than 2 1/2 inches.
How much does a 36 inch concrete pipe weight?
Reinforced Concrete Pipe | ASTM C76 (Tongue and Groove Joints | Rubber Gasket Joints)
| SIZE (Diameter inches) | CLASS | WEIGHT (LBS/LF) |
|---|---|---|
| 36 | III IV V | 533 |
| 42 | III IV V | 697 |
| 48 | III IV V | 883 |
| 54 | III IV V | 1,114 |
What is cement concrete pipe?
REINFORCED CEMENT CONCRETE PIPES ( RCC ) The manufacture of high quality concrete pipes popularly known as HUME PIPE, is an important product of IHP. The Pipes are made to Indian Standard Specification (I.S. 458-1988), and which compare favorably with the Australian, British or American Standards.
How much does concrete pipe weigh?
Sloped-End Section – Class III ASTM C76 Tongue & Groove Reinforced Concrete Pipe
| RATIO | ESTIMATED WEIGHT (LBS/PR) | NUMBER OF JOINTS |
|---|---|---|
| 3:1 | 11,152 | 2 x 8 ft. |
| 4:1 | 11, 152 | 2 x 8 ft. |
| 6:1 | 16,728 | 3 x 8 ft. |
| 48-inch Reinforced Concrete Pipe | Scored Slope End Sections |
What is a concrete pipe called?
Reinforced concrete pipe, or RCP, is one of the standard materials used in storm sewer systems, sanitation systems, and large irrigation projects. One benefit of concrete is its inherent strength, which simplifies installation and backfilling procedures.
Are box culverts precast?
Four-sided concrete culverts, commonly referred to as box culverts, are some of the most versatile precast concrete products on the market. Box culverts are suitable for applications such as underpasses, tunnels, subways, bridges, stream culverts, material handling, storage, and more.
Can you cut reinforced concrete pipe?
STA BLADE SERIES Will cut reinforced concrete and concrete pipe. Turbo segment for fast and smooth cutting. Will cut approximately 6000 inch-feet of concrete.
What is Rcrrj pipe?
Enquire Now. Hynds Hyspec Spun Rubber Ring Joint (RRJ) Pipe can perform in a wide range of New Zealand conditions, from marine installations with constant wetting and drying, to high loading installations underneath highways and deep embankments. Designed to AS/NZS 4058 and available in all class strengths.
What is a PVC pipe used for?
PVC pipe, or Poly Vinyl Chloride pipe, is a relatively modern type of piping, used most often in drinking water systems, and other cold water installations. When there is a need for foodstuffs or ultra-pure liquids in manufacturing applications, PVC pipe or stainless steel pipe is usually used.
How is a PVC pipe manufactured?
PVC pipes are created by starting with a molten mixture of the material and shaping them around a cast. The casts are made to be the exact width of the pipe. The mixture is poured into a cast and surrounded by an outer shell. The complete set is then placed into an oven to be cooked.
What is reinforced concrete Pipe (RCP)?
Definition – What does Reinforced Concrete Pipe (RCP) mean? Reinforced concrete pipe (RCP) is made from a composite material that includes some type of strengthening element, such as steel bars. The aim is to compensate for the concrete’s relatively low tensile strength and ductility.

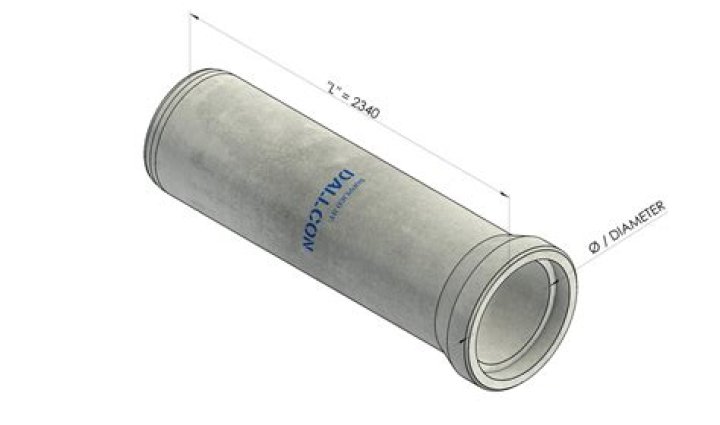

What are the dimensions of concrete pipe?
Reinforced concrete or RCP pipe dimensions are measured in diameters. Some of the most common are 15”- 18”- 24”- 30” – 36”- 42” and 48”.
