sine wave signals
2.1. 1 The Hartley Oscillator. The Hartley Oscillator is a particularly useful circuit for producing good quality sine wave signals in the RF range, (30kHz to 30MHz) although at the higher limits of this range and above, The Colpitts oscillator is usually preferred.
How does a Hartley oscillator work?
Hartley Oscillator is a device that generates oscillatory output (sinusoidal). It consists of an amplifier linked to an oscillatory circuit, also called LC circuit or tank circuit. The function of tank circuit is to tune a certain frequency. LC oscillators are designed to operate in the radio-frequency range.
What is the condition of oscillation in Hartley oscillator?

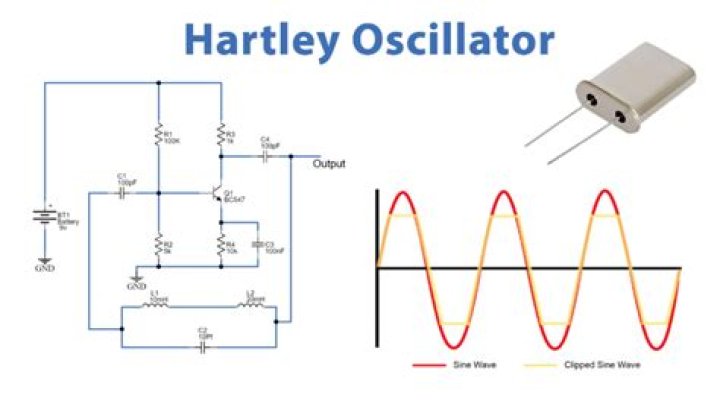

The distinguishing feature of the Hartley oscillator is that the tuned circuit consists of a single capacitor in parallel with two inductors in series (or a single tapped inductor), and the feedback signal needed for oscillation is taken from the center connection of the two inductors.
What is the output signal of Hartley oscillator?
This Hartley Oscillator configuration has a tuned tank circuit with its resonant coil tapped to feed a fraction of the output signal back to the emitter of the transistor. Since the output of the transistors emitter is always “in-phase” with the output at the collector, this feedback signal is positive.
What is a Hartley oscillator used for?
It is used to produce a sinewave of desired frequency. Mostly used as a local oscillator in radio receivers. It is also used as R.F. Oscillator.
What is the purpose of Hartley oscillator?
Where is Hartley oscillator commonly used?
Hartley oscillators are commonly used in radio frequency (RF) oscillator applications and the recommended frequency range is from 20 kHz to 30 MHz. Hartley oscillators can be operated at frequencies lower than 20 kHz, but for lower frequencies, the inductor value needs to be high and it has a practical limit.
What is Hartley oscillator used for?
The Hartley Oscillator is a particularly good circuit for producing fairly low distortion sine wave signals in the RF range, 30kHz to 30MHz. The Hartley configuration can be recognized by its use of a tapped inductor divider (L 1 and L 2 in figure 1).
What is the difference between Colpitts and Hartley oscillators?
The Hartley Oscillator is a particularly useful circuit for producing good quality sine wave signals in the RF range, (30kHz to 30MHz) although at the higher limits of this range and above, The Colpitts oscillator is usually preferred. Although both these oscillators oscillator use an LC tuned…
Can sinusoidal oscillations with constant amplitude be generated in Hartley oscillator?
Sinusoidal oscillations with constant amplitude can be generated in the Hartley oscillator. Sometimes distorted sinusoidal signals will get generated due to the presence of harmonics. This is one of the major disadvantages of the Hartley oscillator.
What is feedback voltage and output voltage in Hartley oscillator?
In Hartley oscillator the feedback voltage is across L 2 and output voltage is across L 1
