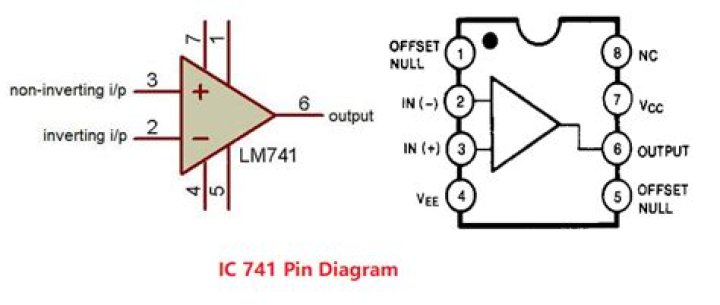

Pin4 & Pin7 (Power Supply): Pin7 is the positive voltage supply terminal and Pin4 is the negative voltage supply terminal. The 741 IC draws in power for its operation from these pins. The voltage between these two pins can be anywhere between 5V and 18V. Pin6 (Output): This is the output pin of IC 741.
What is the CMRR of 741 IC op-amp?
For 741IC, CMRR is 90dB. The change in the op-amp’s offset voltage caused by variations in supply voltage is called SVRR. The change in supply voltage can be denoted by dV and the corresponsing change in input ffset voltage can be denoted by dVio. For 741 IC, SVRR = 150uV/V.
What does saturation mean in electronics?
When the bias is increased beyond that point (called the saturation point), no further increase in the current occurs. In the characteristic curve (current versus forward bias) of an amplifying or switching device, saturation is indicated by a leveling off of the curve as the forward bias increases.
What is the gain of a 741 operational amplifier?
about 2,00,000
741 Op-Amp Characteristics The frequency range of amplifier signals for IC 741 op amp is from 0Hz- 1MHz. The voltage gain of the IC 741 is about 2,00,000.
What is gain bandwidth product of 741?
For the 741 op-amp, fc is given as 1 MHz, and the open-loop gain at this frequency is simply one. Gf is defined as the gain- bandwidth product, and for all frequencies this product must be a constant equal to fc. It is generally given in V/μs, and for the 741 op-amp is something close to 1v/μs.
What is the ideal value of CMRR for 741 IC op amp?
infinity
∴ The CMRR of an ideal Op-Amp is infinity.
In which case the op-amp goes into saturation?
Even by using a rail-to-rail output operational amplifier like the TLV2462, the output of the operational amplifier would go into saturation if the input signal VIN is above 2.5 V. If this input over-voltage signal occurs, the gain of the operational amplifier A1 needs to be decreased.
How can op-amp prevent saturation?
The only way to keep the OpAmp from saturating is to provide an inner feedback loop. This could be done by changing the switch to from a SPST to a DPST type and adding a local feedback resistor Rfb.
What happens when you saturate a 741 op-amp?
Whenever I saturate a 741 op-amp by exceeding the limit of its positive supply voltage, the output saturates to the negative supply voltage. For example, if I construct a voltage follower with +/- 15 V supplies and an input of +20 V, the output is (roughly) -15 V, not +15 V.
What is the 741 op amp IC?
The 741 Op Amp IC is a monolithic integrated circuit, comprising of a general purpose Operational Amplifier. It was first manufactured by Fairchild semiconductors in the year 1963. The number 741 indicates that this operational amplifier IC has 7 functional pins, 4 pins capable of taking input and 1 output pin.
What is LM741 op-amp?
LM741 or uA741 or called 741 is a type of op-amps. They are a high-performance operational amplifier on a single chip. From advances of an integrated circuit. The op-amp can be on tiny silicon sheets. They are in a plastic package DIP-8 of Fairchild, Since the year 1965. And the op-amp became number 741 in the second year, Fri 1968.
What is the output voltage of IC 741?
The 741 IC draws in power for its operation from these pins. The voltage between these two pins can be anywhere between 5V and 18V. Pin6 (Output): This is the output pin of IC 741.
